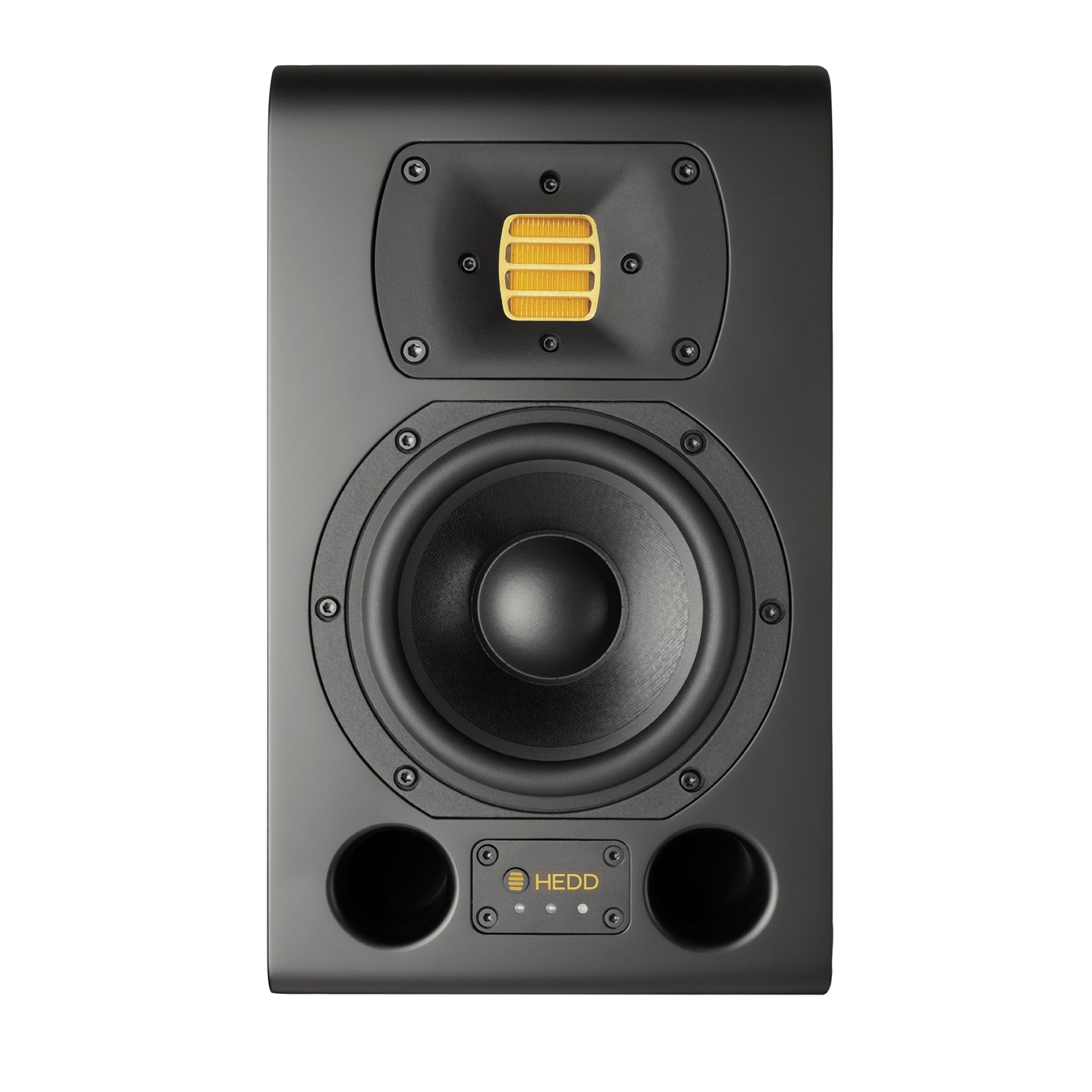

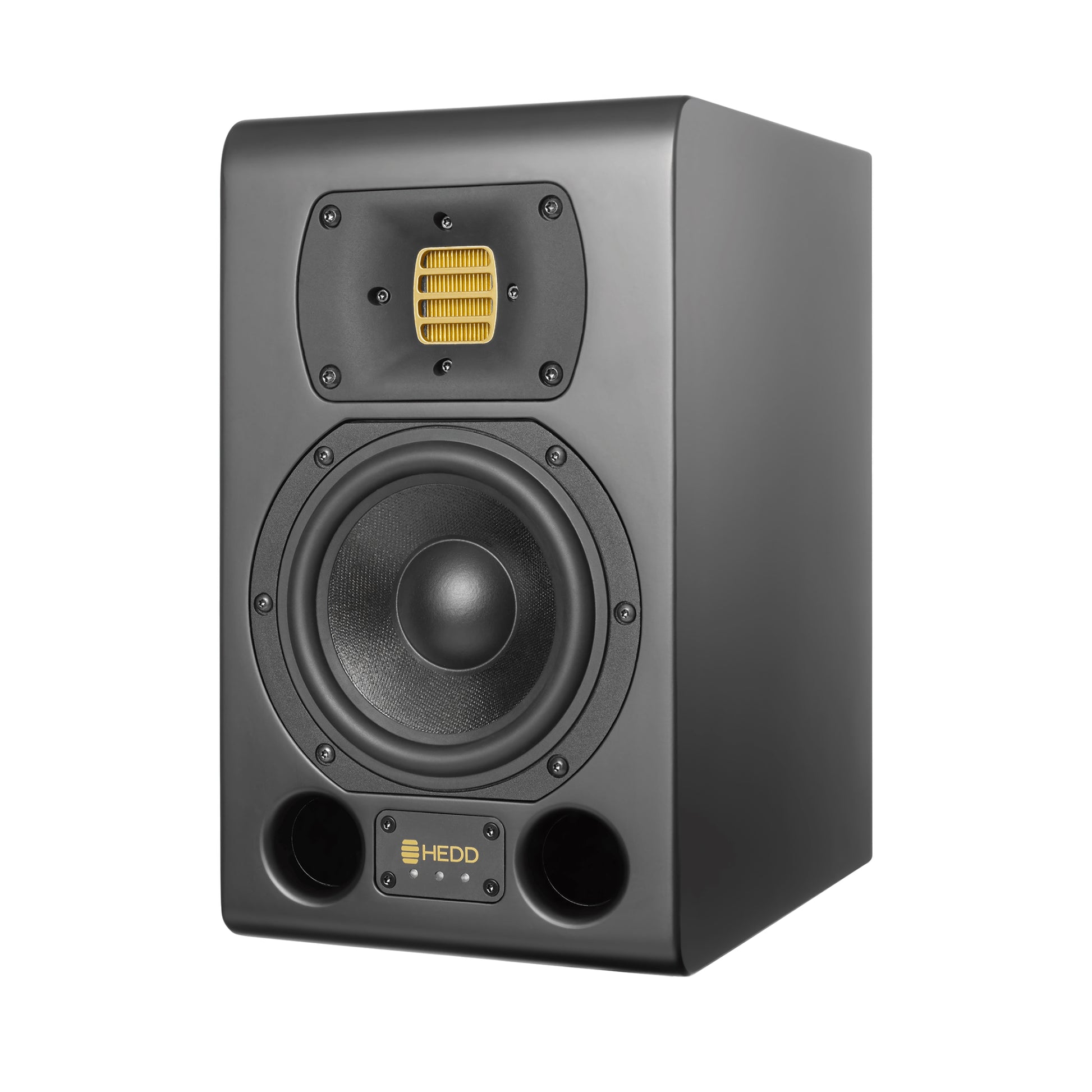

TYPE 05 A-CORE EDITION X

Name: TYPE 05 A-CORE EDITION X
Brand: HEDD Audio
Price: 749.0 EUR
Availability: InStock

Analog Precision. Golden Legacy.

€749

Inkl. Steuern.

Layout Single

0% Finance available

To celebrate our 10th anniversary and Klaus Heinz’s 40 years of loudspeaker innovation, we have developed the TYPE 05 A-CORE EDITION X.

Limited to just 100 pairs worldwide, EDITION X delivers pure analog performance reimagined with upgraded materials and crafted as a once in a lifetime edition.

Handmade in Germany, it embodies purity, precision, and longevity. EDITION X is made for those who listen with intention.

Features

High-definition, hand-built Air Motion Transformer driver for clear, accurate upper mid and high frequencies
Custom black ENIG-finished PCB for superior signal path purity, stability, and corrosion resistance

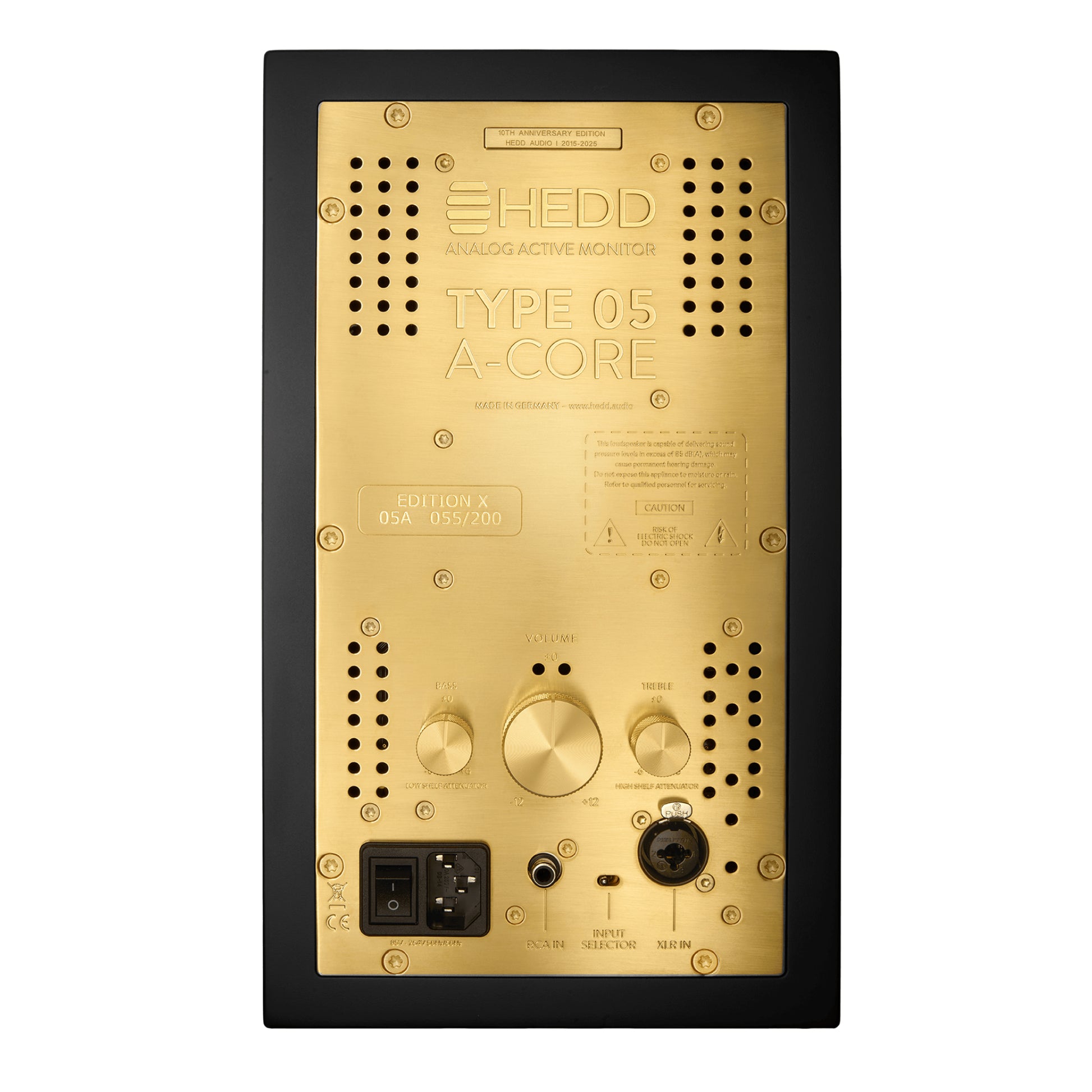

18k gold-plated, Italian-made backplate, screws, and tweeter grille
Unique engraved details including serial number
5” custom honeycomb woofer

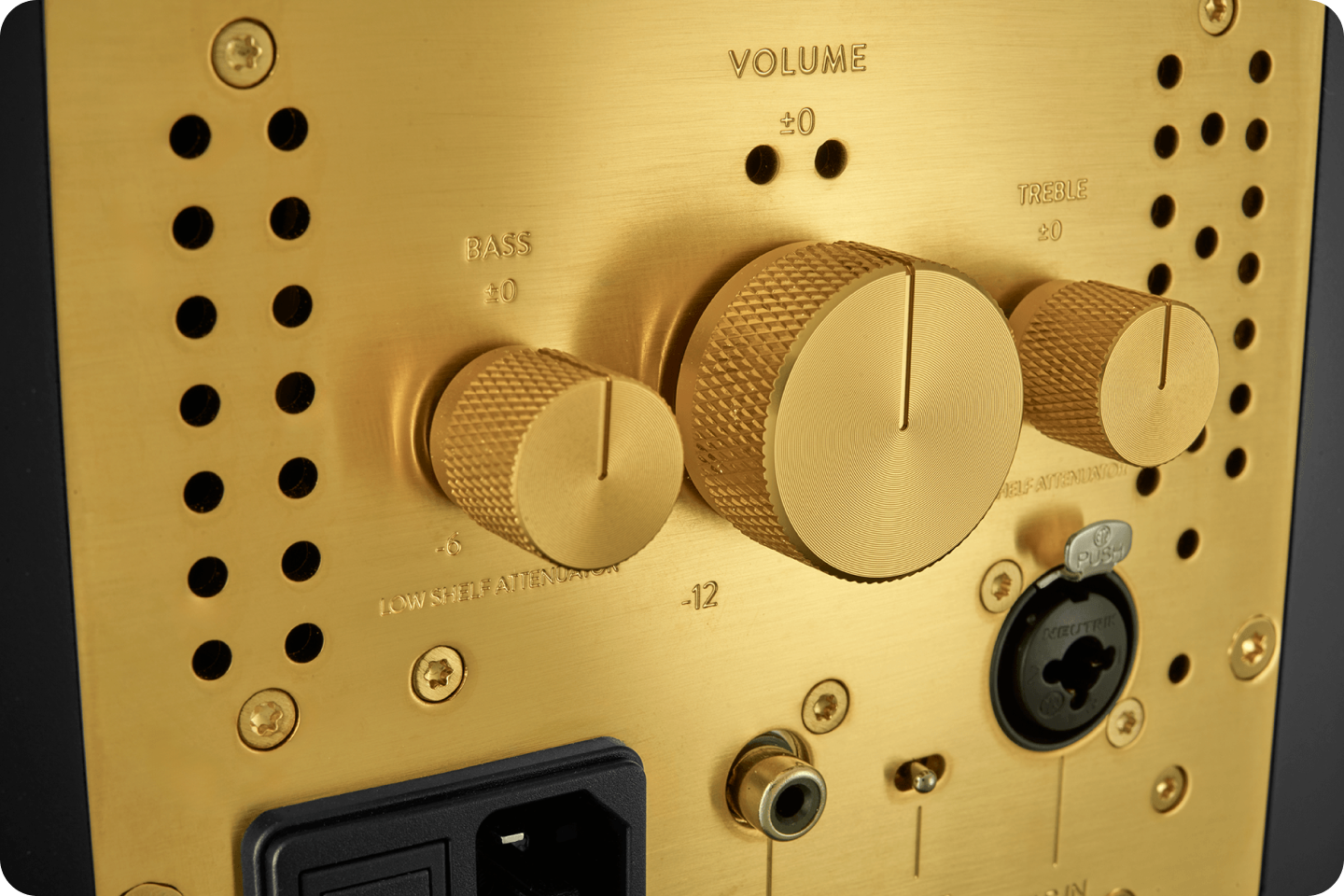

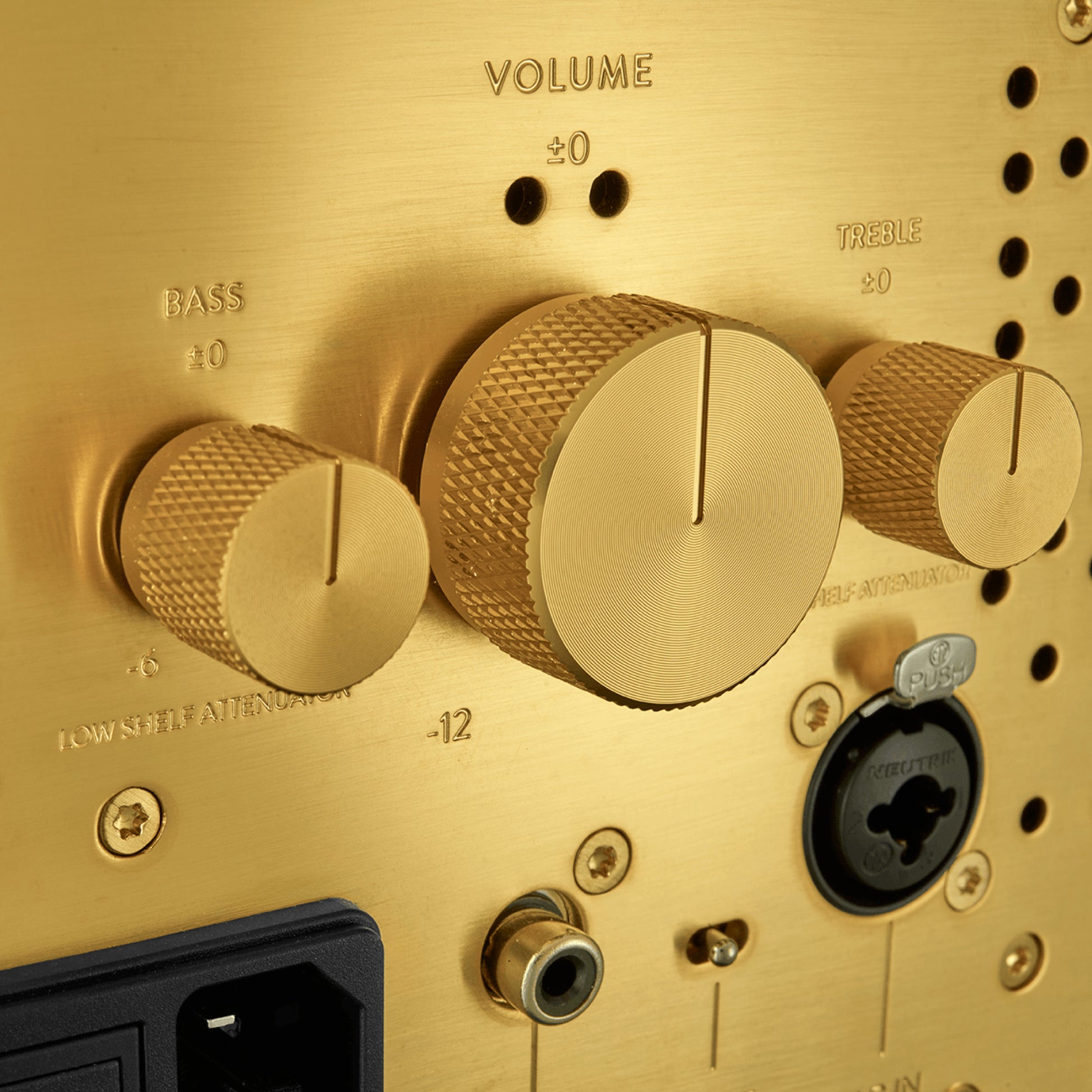

High and Low shelving EQ (±6 dB, continuous) to adjust for your room and tastes
RCA (unbalanced), XLR & TRS (balanced) inputs
Physical front-panel standby switch
Mounting ready for Atmos installations
5 year warranty after registration

Specification

Main Features: 2-way active nearfield speaker, Pure Analog Signal Path, Plug-and-Play
Drivers: 5” custom Honeycomb compound woofer, Air Motion Transformer tweeter
Power: 2 x 100 W ICEpower Class D amplifiers
Frequency Range: 43 Hz – 50 kHz
Crossovers: 2,500 Hz
Maximum SPL: 112 dB SPL (per pair, 1m)
Inputs: XLR, TRS (balanced), RCA (unbalanced)
Design: Black satin finish, Front panel LED indicators (active, standby, overload)
Dimensions: 308 × 180 × 245 mm
Weight: 6.2 kg (net) per unit

Vollständige Details anzeigen

Key features

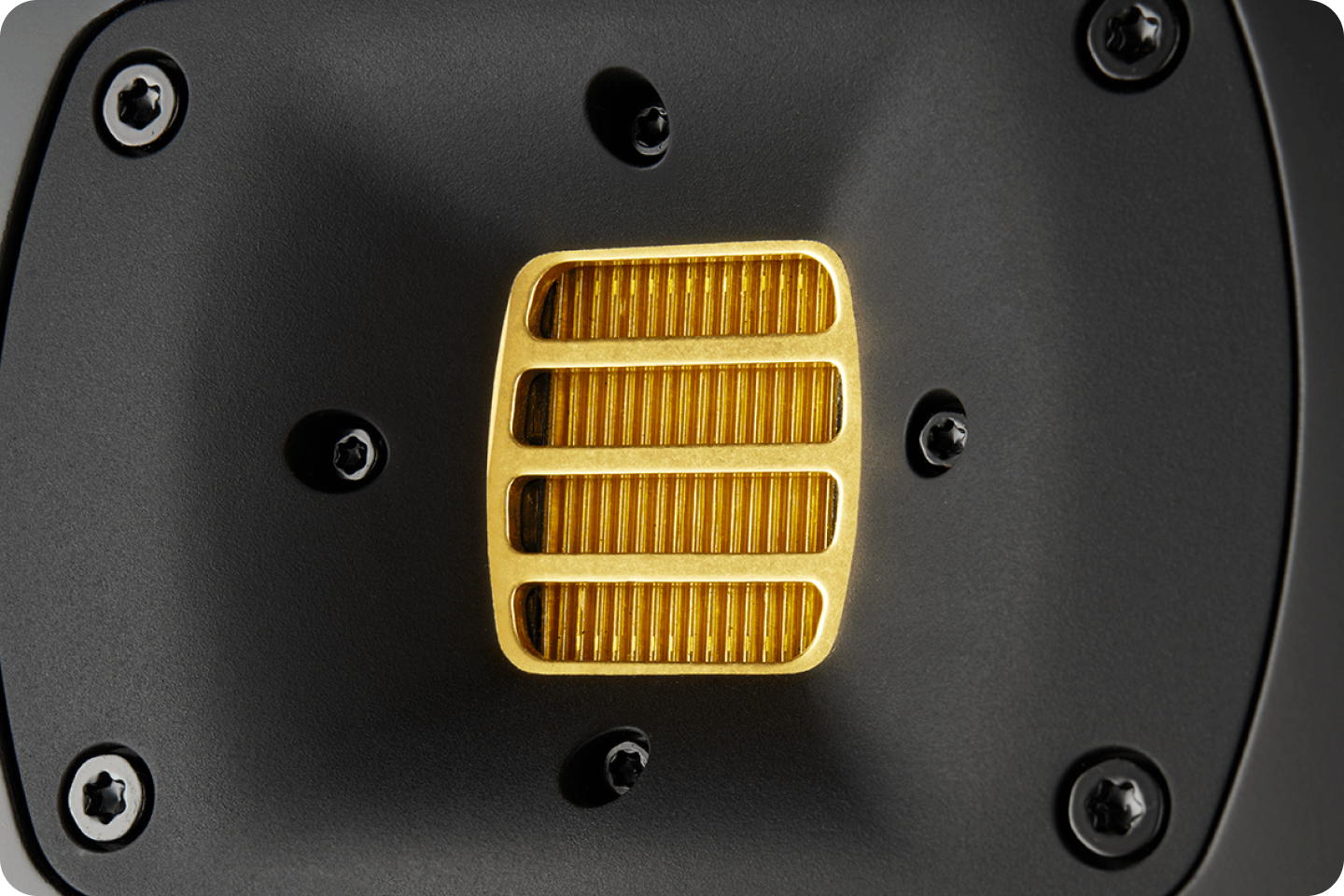

Air Motion Transformer
The Edition X is equipped with our full-range Air Motion Transformer, crafted in Berlin for natural, uncolored sound and now framed by a custom gold grille that elevates both form and function. Its high-frequency extension and fast transient response ensure every nuance is faithfully preserved.
Analog Excellence
The Edition X features our most refined analog architecture to date, including a custom ENIG-finished PCB that ensures superior signal purity and long-term stability delivering the most natural response with a flawless, low-latency analog path.
Ease of Use
Beneath the bespoke finish, the Edition X remains true to the A-CORE principle of simplicity. With flexible connectivity and onboard EQ for room tuning, it’s designed to deliver great sound no matter where or how you work.
Made in Berlin
Each Edition X is part of a one-time production of just 100 units built in Berlin, finished with Italian-made gold-plated components, and uniquely engraved to mark its place in our story. A celebration of our 10-year journey, and a reflection of craftsmanship built to last.
