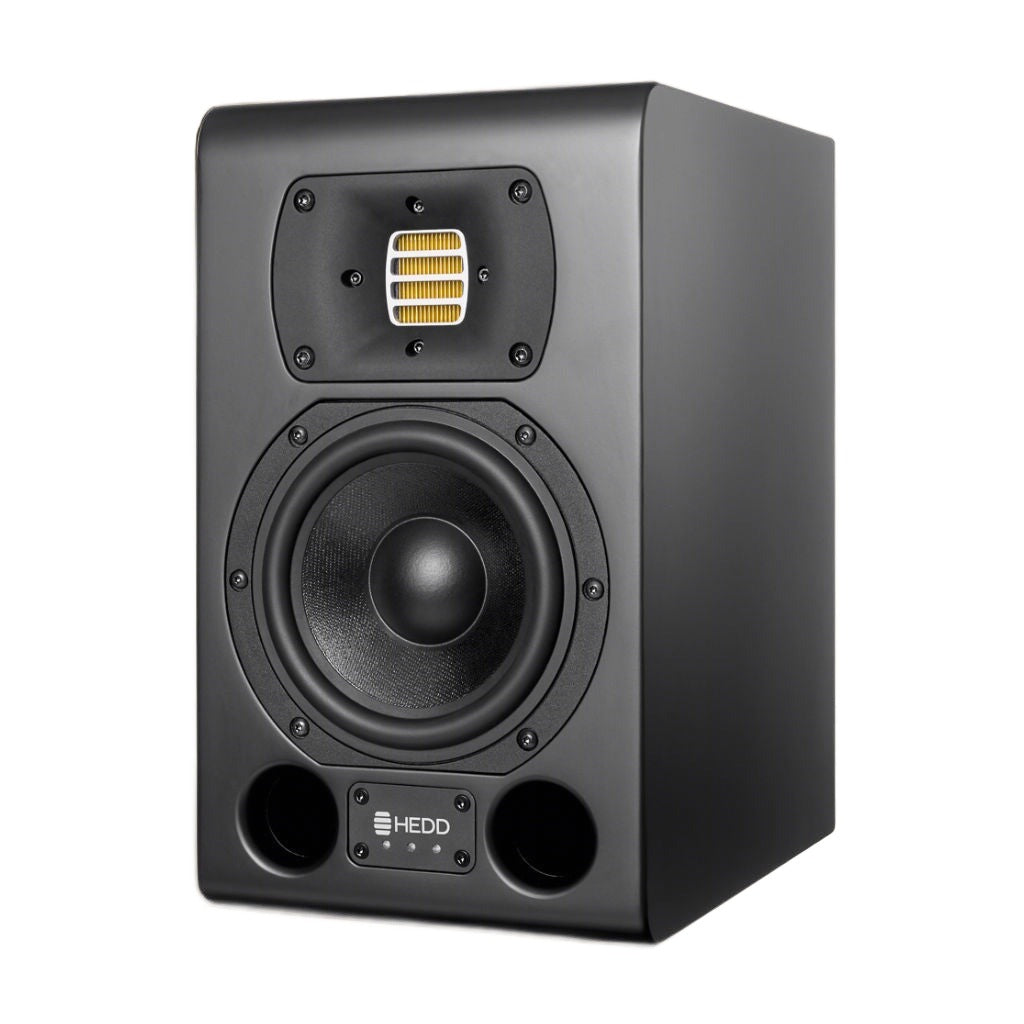

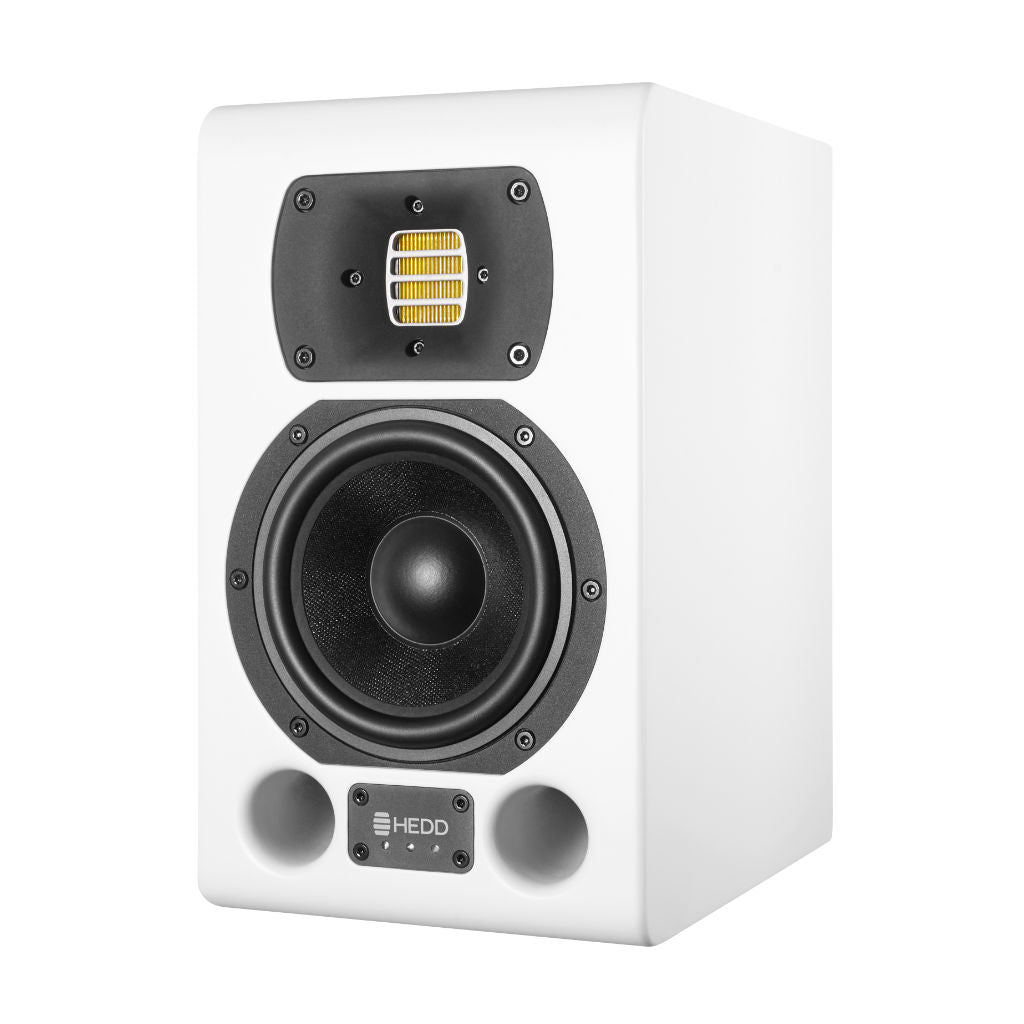

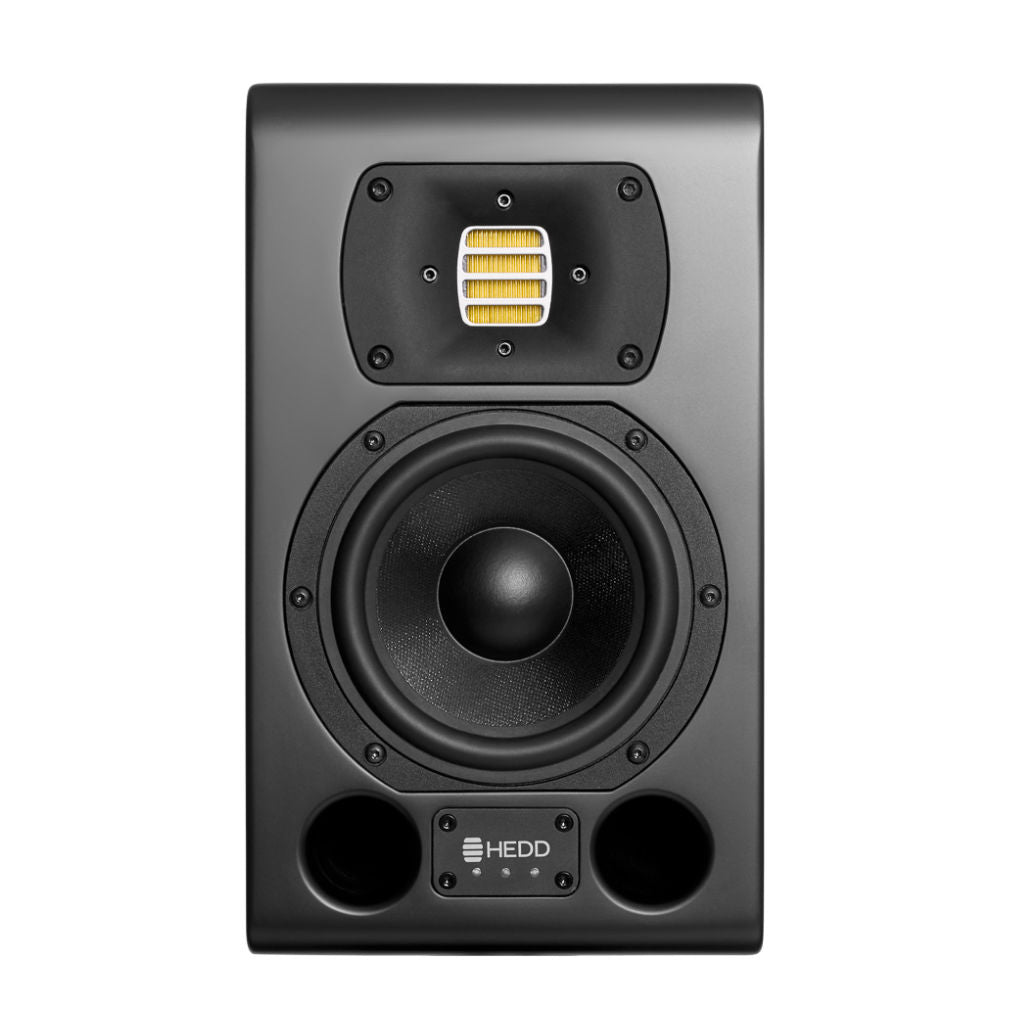

TYP 05 MK2

Riesiger Sound, kleiner Platzbedarf.

Normaler Preis €849 €849 Verkaufspreis
Normaler Preis €849
Inkl. Steuern.
Farbe
Layout
0% Finance available PayPal credit

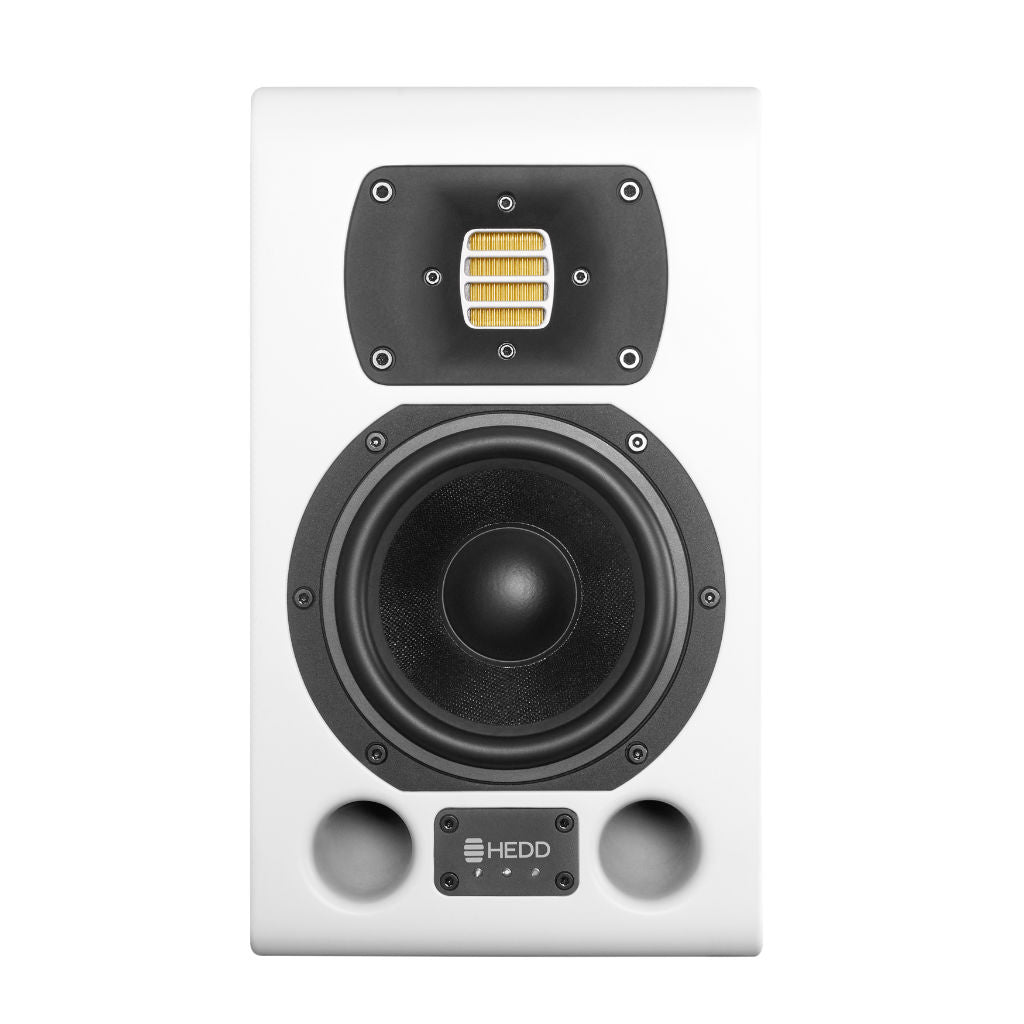

Der TYPE 05 ist ein Monitor, der in kleine Räume passt und dennoch eine hervorragende Leistung liefert. Er ist ideal für Heimstudios oder Rundfunk- und Videobearbeitungsräume.

Dieser kompakte 2-Wege-Monitor bietet eine bessere Klarheit und Kontrolle über den gesamten Frequenzbereich als die meisten Industriestandards und verfügt über alle DSP-fähigen Funktionen unserer MK2-Reihe.

Es ist auch eine großartige Ergänzung für Atmos-Installationen auf Deckenhöhe, insbesondere in kleineren Räumen.

Ask our product agent about features, compatibility, or advice on the best setup for your space!

Features

  • 5-Zoll-Wabentieftöner
  • High-Definition-Air-Motion-Transformer-Treiber für klare, präzise obere Mitten- und Hochfrequenzen
  • Dank des hochwertigen 32-Bit-SHARC-DSP können Sie den Lautsprecher an Ihre Bedürfnisse anpassen
  • HEDD-Linearisierer, ein Nullphasenfilter zur Erzeugung eines faszinierenden Stereobildes und einer faszinierenden Tiefe
  • Die geschlossene oder portierte Funktionalität bietet Ihnen das Beste aus zwei Überwachungssystemen: präzise und detailliert (geschlossen) oder verbesserte Basswiedergabe (portiert).
  • Mit dem Desktop-Filter können Sie Reflexionen von nahegelegenen Studiomöbeln entfernen
  • Hi- und Low-Shelving-Filter zur Abstimmung der Ausgabe nach Ihren Wünschen
  • Bass-Erweiterungsmodus zur Erhöhung des unteren Frequenzbereichs um bis zu 20 %
  • Komplettes, linearphasiges Satelliten-Subwoofer-Setup mit BASS 08 Subwoofern
  • Aluminium-Topfregler

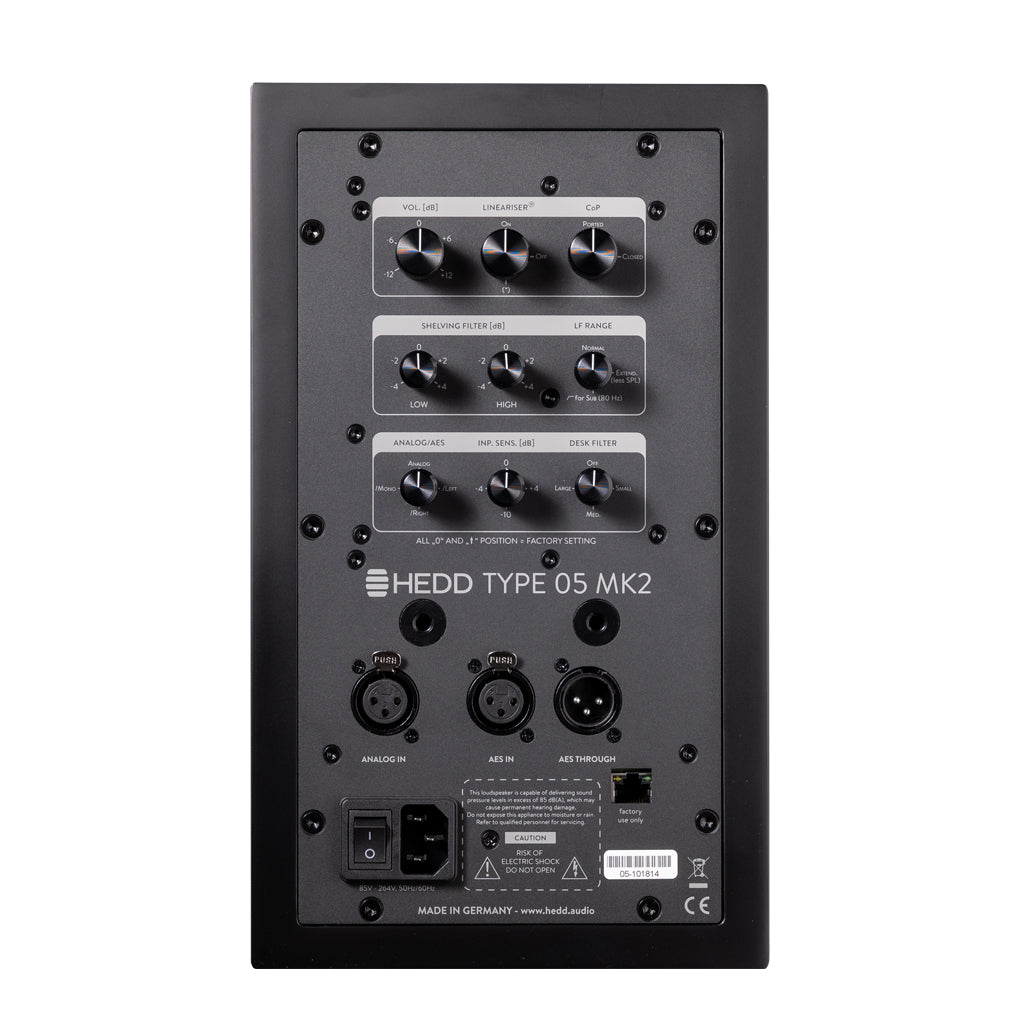

  • Analoge XLR- und digitale AES-Anschlüsse (unterstützt AES/EBU mit Daisy-Chaining)
  • In Berlin mit Premium-Komponenten montiert
  • Jede Einheit wird vor dem Versand getestet
  • Montagezubehör separat erhältlich, ideal für Atmos-Installationen
  • Laufende Funktionsunterstützung über das HEDD Access-Tool (separat herunterladbar)
  • 5 Jahre Garantie nach Registrierung

Specification

Main Features
HEDD Lineariser®, CoP, GDC, LFE, Desk and Shelf Filters
DSP Integration
Custom high-resolution 96 kHz / 32 Bit AD / DA converter
Drivers
5" Woofer (1,5" voice coil) + HEDD AMT Tweeter
Power
2x100 W ICEpower amplification (85-264 V)
Crossovers
2.500 Hz
Frequency Range
45 Hz - 40 kHz (LFE: 38 Hz - 40 kHz)
Maximum SPL
112 dB SPL (sound pressure level) per pair at 1m
Inputs
Analog (XLR / 22 kΩ) and Digital 2ch (AES / XLR)
Output
Digital AES pass-through via XLR
Dimensions
308 x 180 x 245 mm
Weight
6.4 kg per unit
Vollständige Details anzeigen

Key features

  • Air Motion Transformer

    Handmade in Berlin using high quality components, the HEDD Air Motion Transformer delivers a precise and wonderfully open sound. Thanks to ultra high frequency extension and remarkable transient response, natural sound reproduction is not distorted in any way.
  • Lineariser®

    The heart of the MK2 range’s DSP, the HEDD Lineariser is a high-resolution, zero-phase filter designed to automatically eliminate time delays in order to improve resolution, separation, and imaging accuracy. Ideal for engineering and producing setups.
  • CoP: Closed or Ported

    With CoP all MK2 monitors can act as either a closed or ported cabinet with the use of a POM plug. These two monitoring systems give you different advantages depending on needs: ported (open) lets you feel the music with more bass response while closed increases bass precision, texture resolution, and transient response.
  • Designed and made in Berlin

    All HEDD products are designed and assembled in Berlin by talented engineers and craftspeople who draw from a rich history in audio reproduction to create products tuned to the key of you.
  • 30 days returns

  • Free shipping

  • 5 Year Warranty

Felix Joseph
"The TYPE 05 sound beautifully balanced. The array of filters on the back has been so useful for residential trips where room acoustics can change dramatically and the linear phase mode sounds amazing!"

Felix Joseph
— British Mixing Engineer

https://www.instagram.com/producedbyfelix/

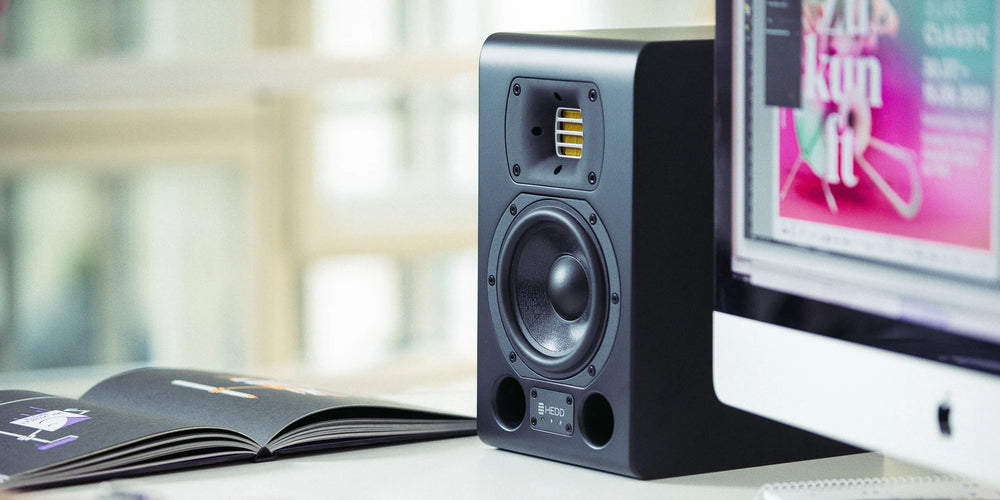

Reviewed by Simplifi

"Given HEDD’s heritage, it’s no surprise that I found the TYPE 05 MK2 monitors so satisfying for desktop audio."

Reviewed by Simplifi

Frequently Asked Questions

What makes the TYPE 05 MK2 suitable for small studios or video-editing suites?

The TYPE 05 MK2 is designed to fit into compact spaces while delivering exceptional performance. Its compact 2-way design provides clarity and control across the entire frequency range, making it ideal for home studios or video-editing suites. With DSP-enabled features and a high-definition Air Motion Transformer tweeter, it ensures precise audio reproduction, even in smaller environments.

How does the TYPE 05 MK2 enhance Atmos installations?

The TYPE 05 MK2 is an excellent choice for Atmos installations, especially at the ceiling level in smaller rooms. Its ability to deliver clear, accurate sound through its high-definition Air Motion Transformer tweeter and 5" honeycomb woofer makes it perfect for creating immersive audio experiences. The monitor's compact size and mounting gear (available separately) make it easy to integrate into any Atmos setup.

What are the care instructions for the TYPE 05 MK2?

To keep your TYPE 05 MK2 in optimal condition, ensure it's placed in a stable environment away from excessive dust and moisture. Clean the exterior with a soft, dry cloth. Regularly check connections and settings to maintain audio quality. Avoid exposing the monitor to extreme temperatures and handle with care to prevent damage to the components.

Is the TYPE 05 MK2 environmentally friendly?

The TYPE 05 MK2 is assembled in Berlin with premium components, ensuring high quality and durability. While specific sustainability details are not provided, the long lifespan and robust construction contribute to reduced waste and a lower environmental impact over time.

What are the connectivity options for the TYPE 05 MK2?

The TYPE 05 MK2 offers both analog and digital connectivity options. It features analog XLR and digital AES inputs, supporting AES/EBU with daisy-chaining. This versatility allows for seamless integration into various audio setups, whether in a professional studio or a home environment.
