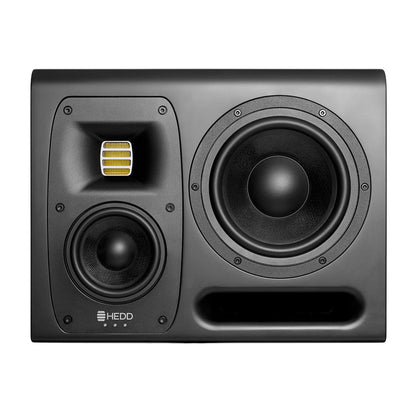

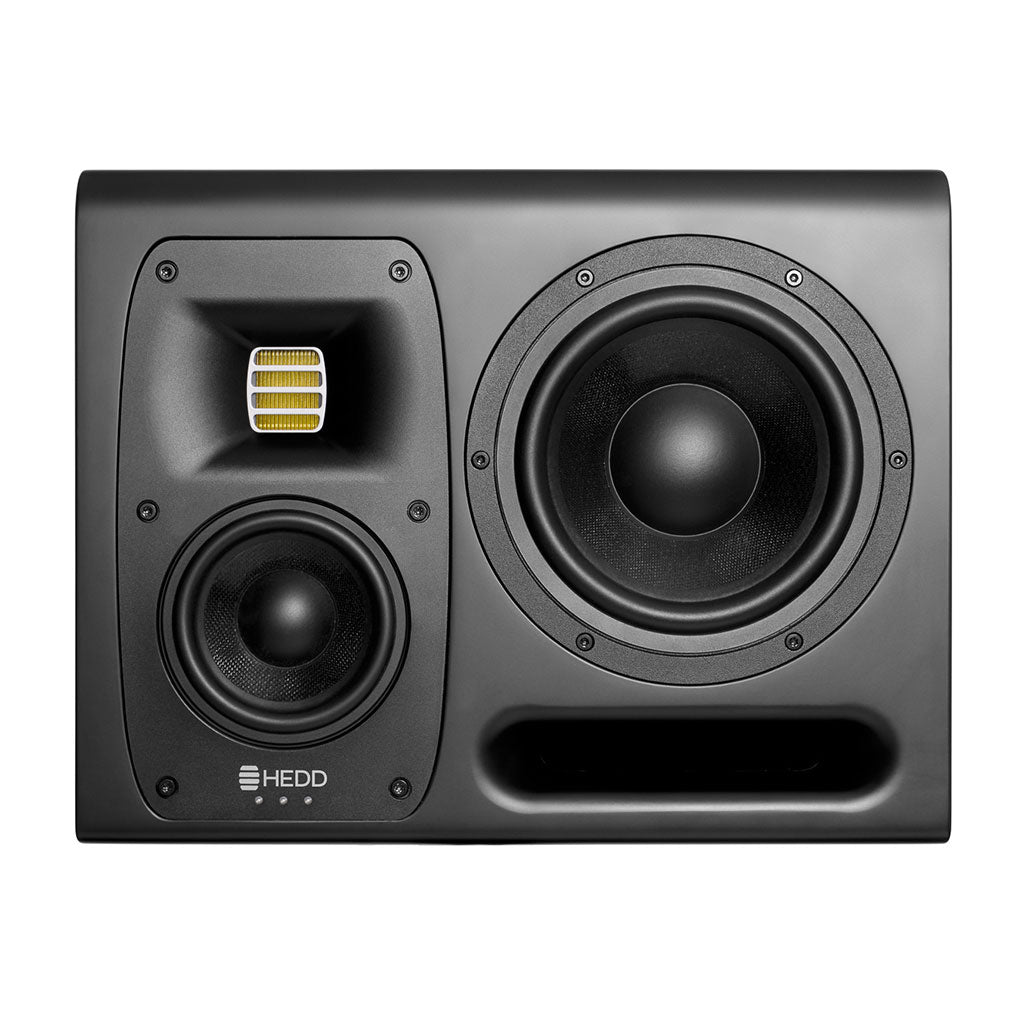

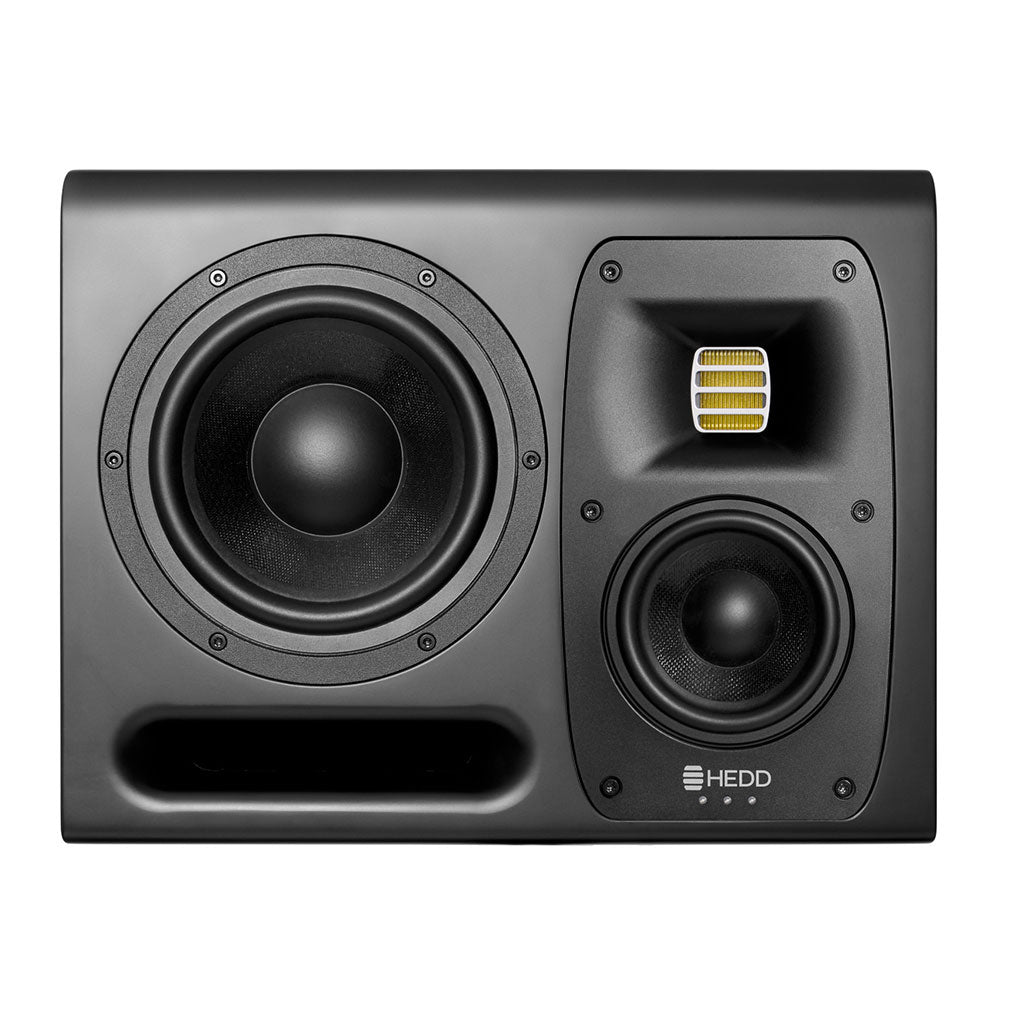

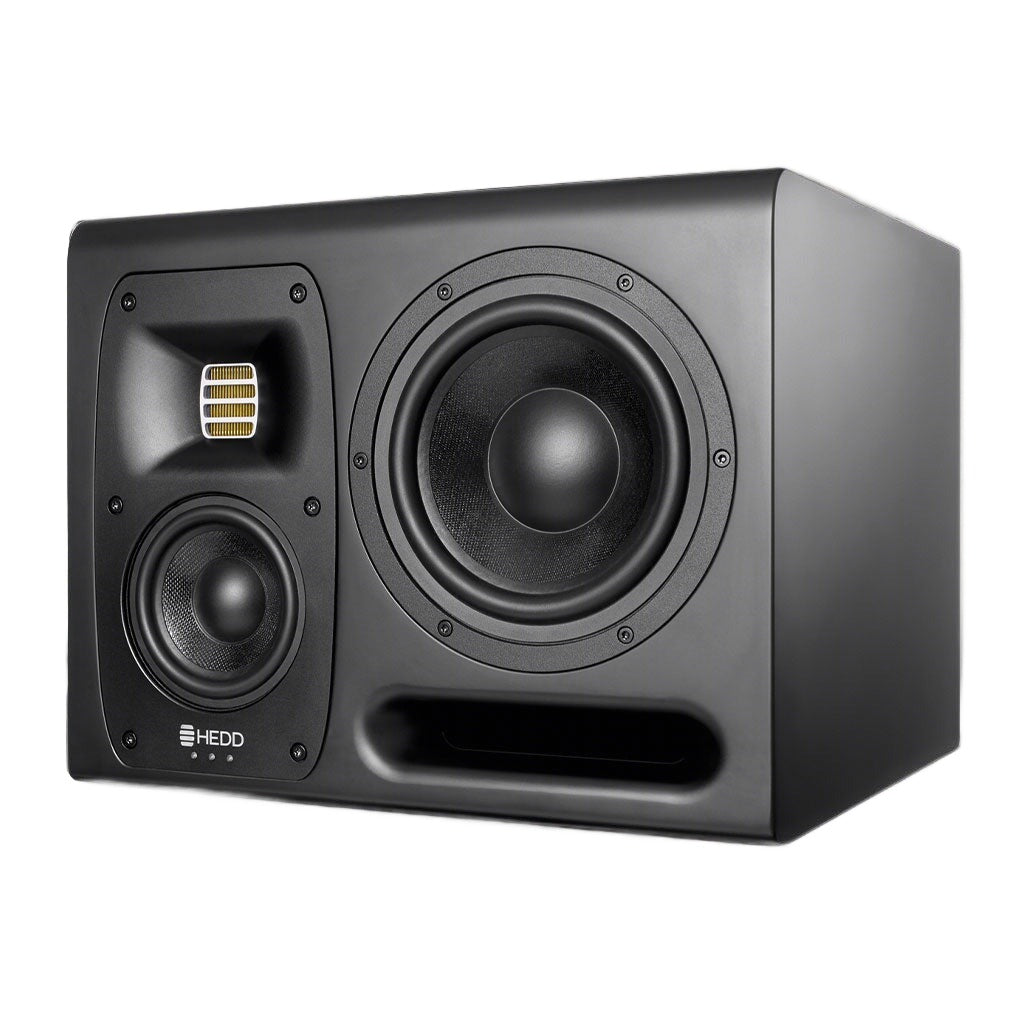

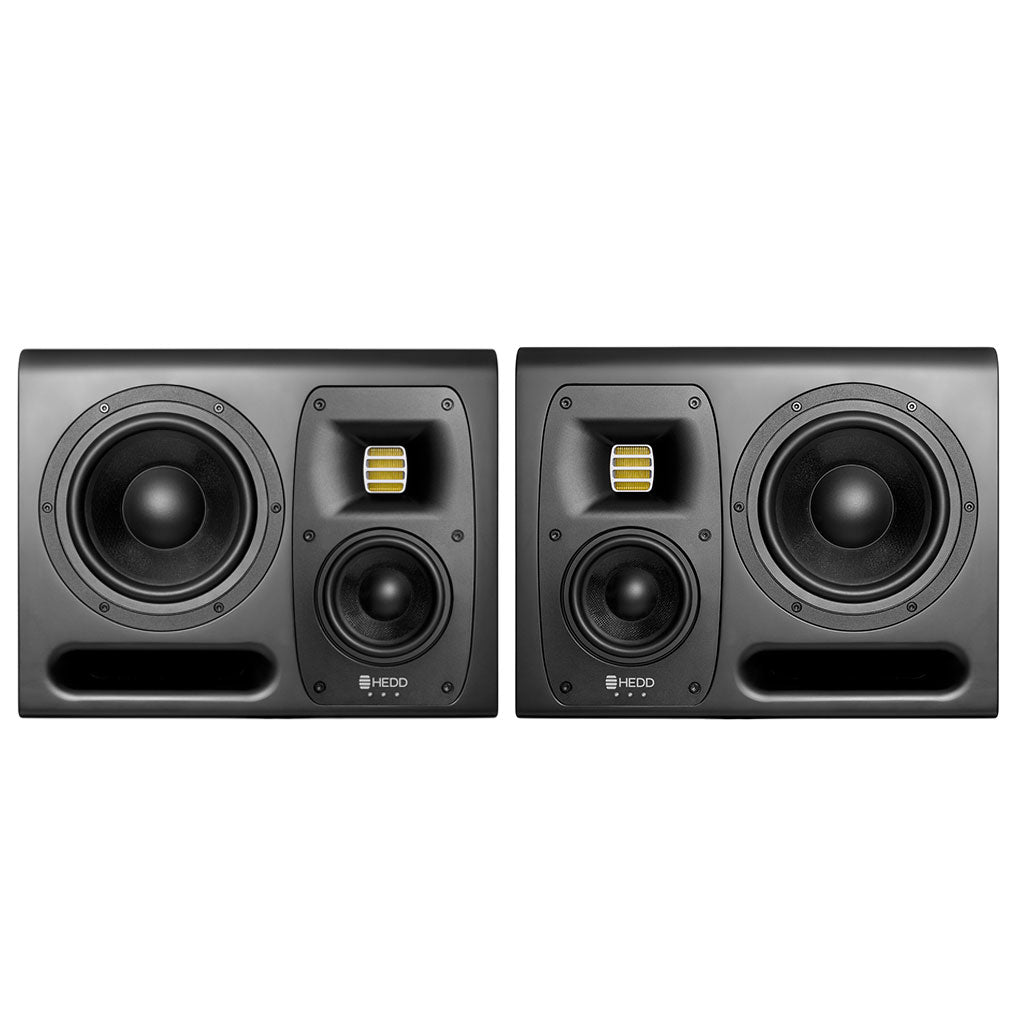

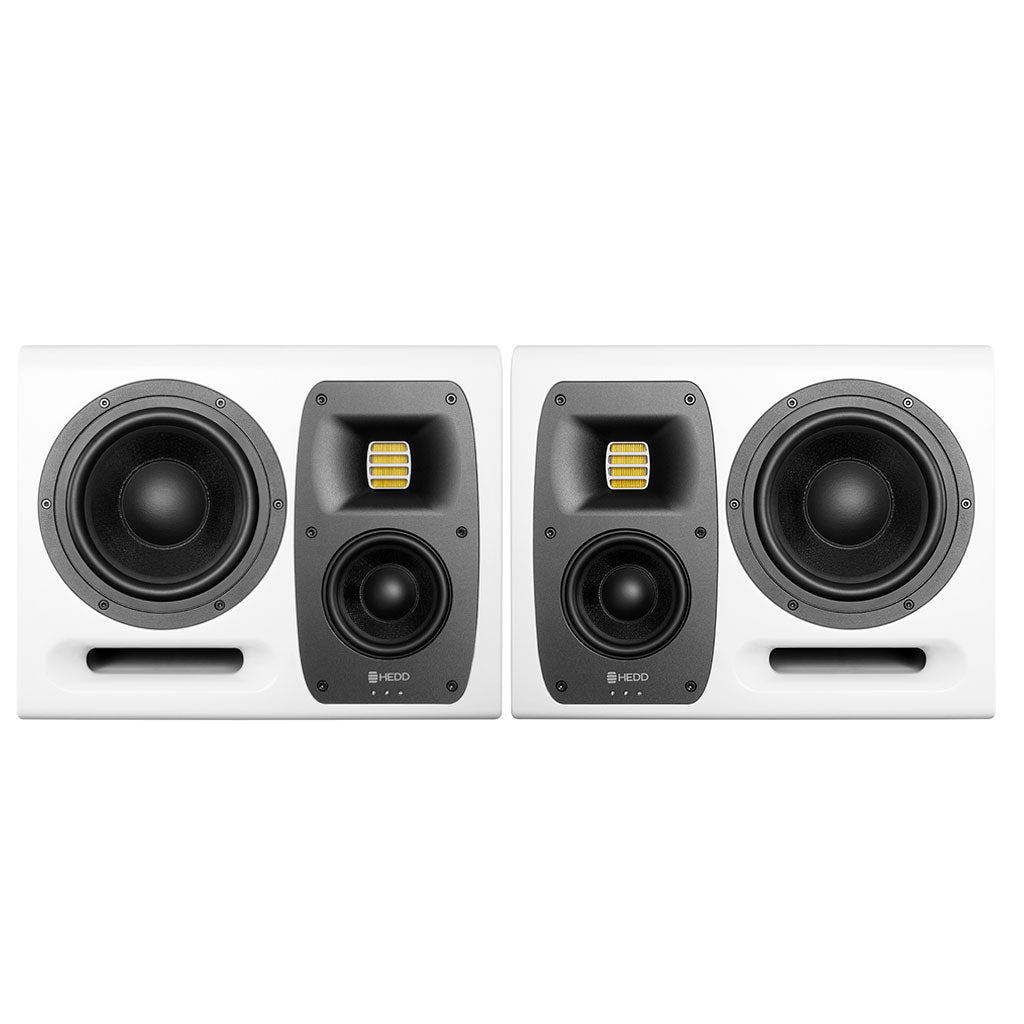

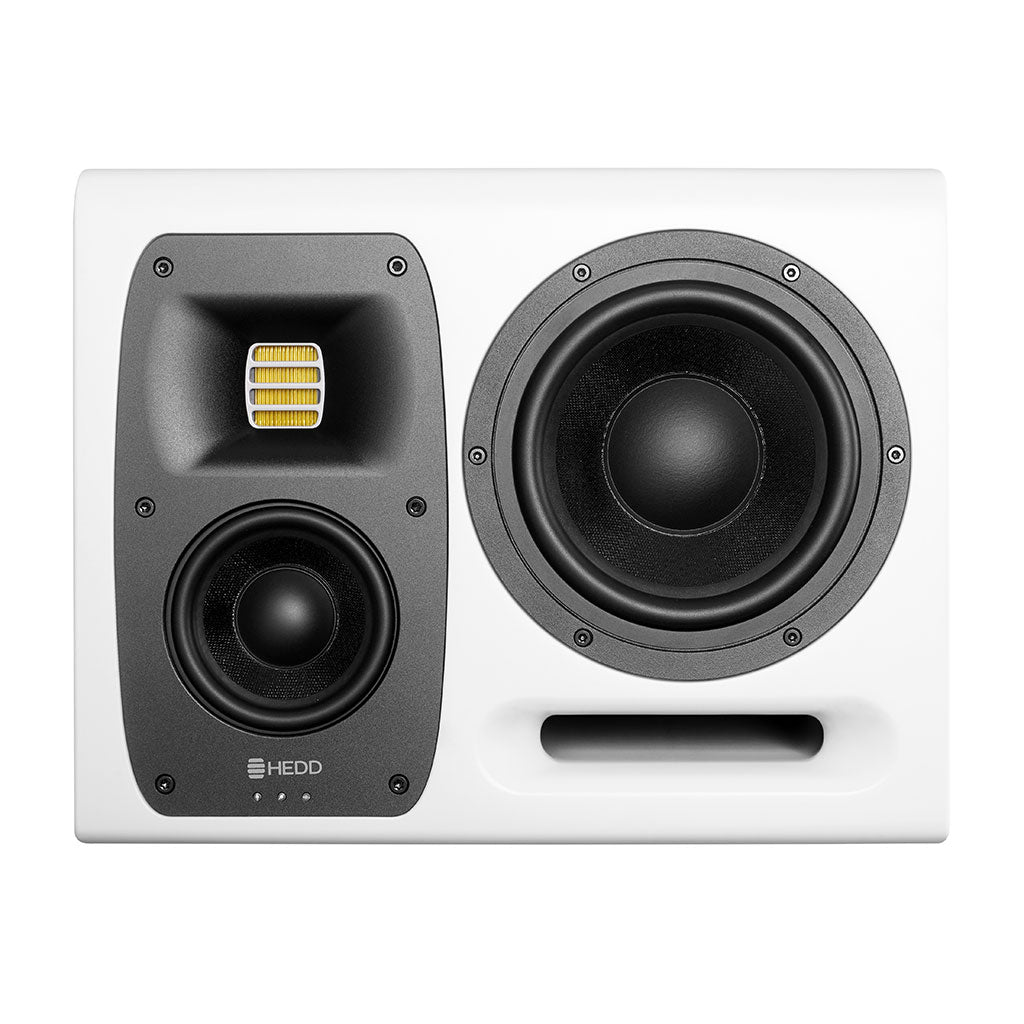

TYP 20 MK2

Vielseitiges 3-Wege-Monitoring ohne Kompromisse.

€2,199
€2,199
Inkl. Steuern.

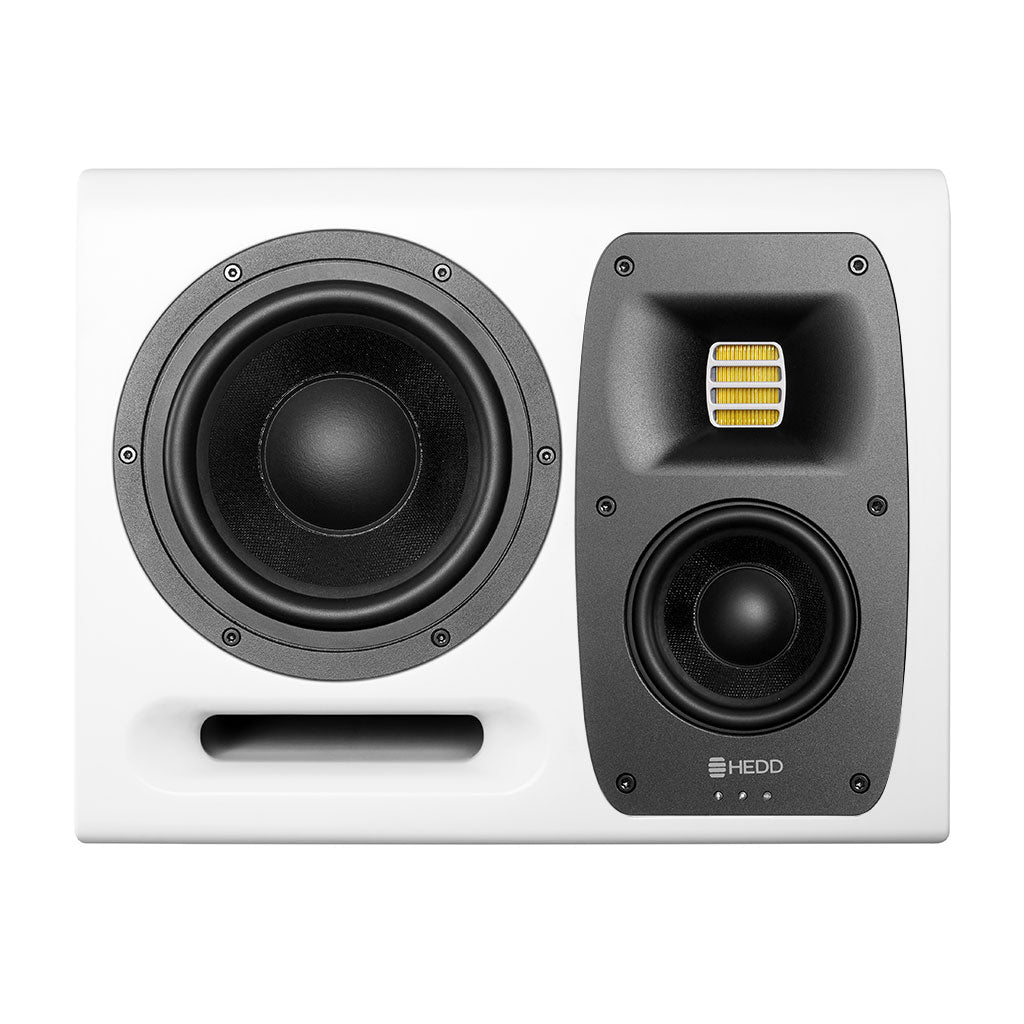

Farbe
Layout
0% Finance available PayPal credit

Ask our product agent about features, compatibility, or advice on setup!

Der TYPE 20 ist ein perfekter Allround-Monitor, der als idealer Partner für Studioprofis konzipiert ist, die an einer Vielzahl von Audioaufgaben arbeiten müssen.

Dank des HEDD Air Motion Transformer-Treibers, des geschlossenen oder Ported-Modus und der DSP-fähigen Funktionen bietet es ehrliche Klarheit im mittleren Bereich und reichlich Leistung im unteren Bereich.

Der TYPE 20 eignet sich gleichermaßen für basslastige Beats, Jazzaufnahmen, Soundtrack-Arbeiten oder Atmos-Mixing.

Features

  • 7-Zoll-Wabentieftöner
  • Spezieller 4-Zoll-Mitteltöner
  • 3 x 300 W ICEpower-Verstärker der Klasse D
  • High-Definition-Air-Motion-Transformer-Treiber für klare, präzise obere Mitten- und Hochfrequenzen
  • Dank des hochwertigen 32-Bit-SHARC-DSP können Sie den Lautsprecher an Ihre Bedürfnisse anpassen
  • HEDD-Linearisierer, ein Nullphasenfilter zur Erzeugung eines faszinierenden Stereobildes und einer faszinierenden Tiefe
  • Die geschlossene oder portierte Funktionalität bietet Ihnen das Beste aus zwei Überwachungssystemen: präzise und detailliert (geschlossen) oder energisch und bassreich (portiert).
  • Mit dem Desktop-Filter können Sie Reflexionen von nahegelegenen Studiomöbeln entfernen
  • Hi- und Low-Shelving-Filter zur Abstimmung der Ausgabe nach Ihren Wünschen
  • Bass-Erweiterungsmodus zur Erhöhung des unteren Frequenzbereichs um bis zu 20 %
  • Komplettes, linearphasiges Satelliten-Subwoofer-Setup mit BASS 08 Subwoofern
  • Aluminium-Topfregler
  • Analoge XLR- und digitale AES-Anschlüsse (unterstützt AES/EBU mit Daisy-Chaining)
  • In Berlin mit Premium-Komponenten montiert
  • Jede Einheit wird vor dem Versand getestet
  • Montagezubehör separat erhältlich, ideal für Atmos-Installationen
  • Laufende Funktionsunterstützung über das HEDD Access-Tool (separat herunterladbar)
  • 5 Jahre Garantie nach Registrierung

Specification

Main Features
HEDD Lineariser®, CoP, GDC, LFE, Desk and Shelf Filters
Dimensions
280 x 358 x 338 mm
Weight
15.4 kg per unit
DSP Integration
Custom high-resolution 96 kHz / 32 Bit AD / DA converter
Drivers
3-Way: Proprietary 7" and 4" Honeycomb Woofers, HEDD AMT Tweeter
Power
3x300 W ICEpower amplification (85-264 V)
Crossovers
250 Hz / 3.200 Hz
Frequency Range
32 Hz - 40 kHz (LFE: 26 Hz - 40 kHz)
Maximum SPL
SPL 120 dB SPL (sound pressure level) per pair at 1m

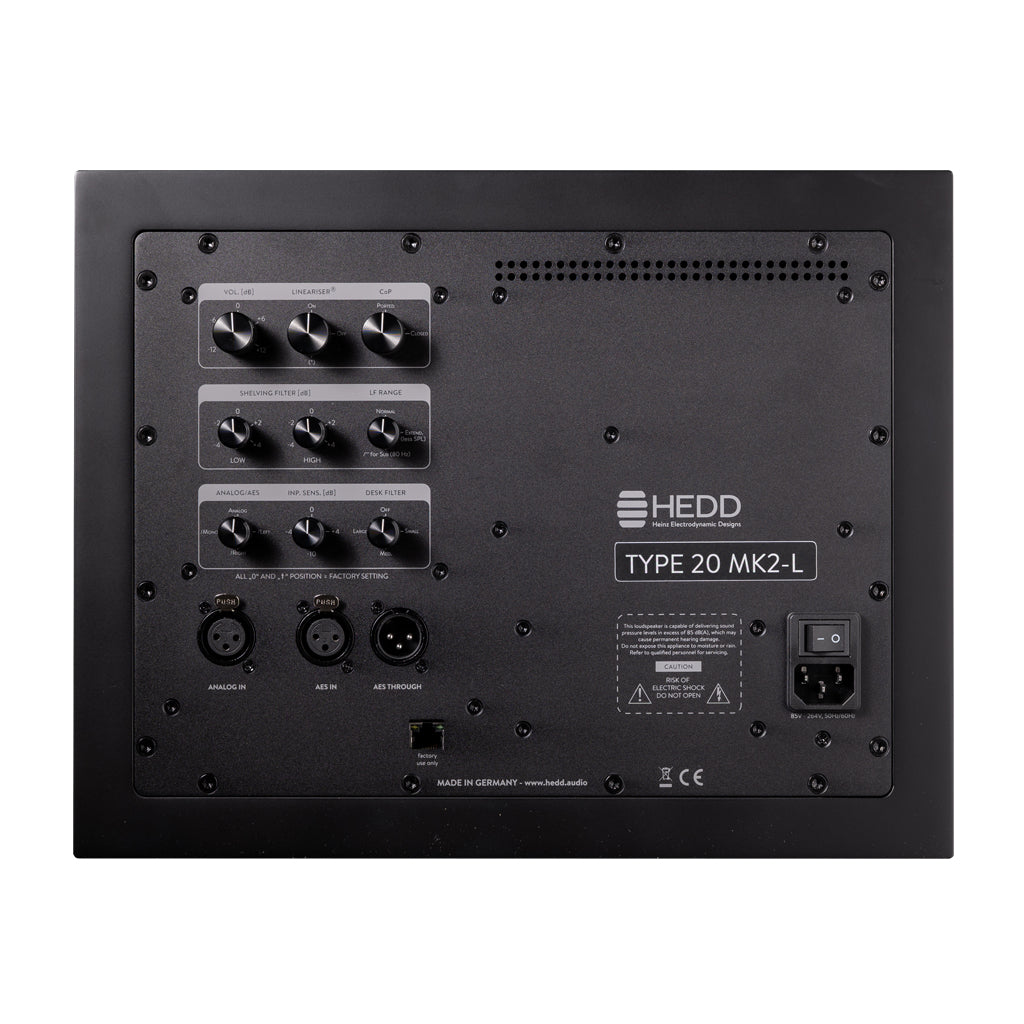

Inputs
Analog (XLR / 22 kΩ) and Digital 2ch (AES / XLR)
Output
Digital AES pass-through via XLR

Downloads

The following files are available for the TYPE 20 MK2 monitor, including manuals and software.

Vollständige Details anzeigen

Key features

  • Air Motion Transformer

    Handmade in Berlin using high quality components, the HEDD Air Motion Transformer delivers a precise and wonderfully open sound. Thanks to ultra high frequency extension and remarkable transient response, natural sound reproduction is not distorted in any way.

  • HEDD CTRL

    Dedicated free software that unifies the MK2 and BASS series into a transparent, reliable, and fully controllable monitoring ecosystem. Interact directly with the Lineariser® zero-phase filter, EQ, delay, and CoP controls to fine tune every element of your system in real time from the listening position.

  • CoP: Closed or Ported

    With CoP all MK2 monitors can act as either a closed or ported cabinet with the use of a POM plug. These two monitoring systems give you different advantages depending on needs: ported (open) lets you feel the music with more bass response while closed increases bass precision, texture resolution, and transient response.

  • Designed and made in Berlin

    All HEDD products are designed and assembled in Berlin by talented engineers and craftspeople who draw from a rich history in audio reproduction to create products tuned to the key of you.

  • 30 days returns

  • Free shipping

  • 5 Year Warranty

Kiefer
"The TYPE 20 feels really good. I'm hearing things more clearly, paying more attention to the details."

Kiefer
— Producer & pianist (Stones Throw, Anderson. Paak, Kaytranada, and more)

Reviewed by Gearspace.com

“From the music creators standpoint, the TYPE 20 MK2 is a reliable and comfortable benchmark whether that's engineering, producing, or tracking.”

Reviewed by Gearspace.com
Für Mike Gao Der TYPE 20 Monitor ist in jeder Situation richtig

Für Mike Gao Der TYPE 20 Monitor ist in jeder Situation richtig

Der Produzent und Technologe Mike Gao erklärt, wie ihm die HEDD TYPE 20 MK2-Monitore dabei helfen, einer wesentlichen Wahrheit über seine Musik auf den Grund zu gehen, die sich leicht auf verschiedene Situationen übertragen lässt – vom Auto bis zum Club.
Read article

Frequently Asked Questions

What makes the TYPE 20 MK2 ideal for studio professionals?

The TYPE 20 MK2 is designed for versatility, making it perfect for studio professionals who handle diverse audio tasks. Its HEDD Air Motion Transformer driver provides precise midrange clarity, while the Closed or Ported mode allows for tailored bass response. With DSP-enabled functionalities, it offers detailed sound for bass-heavy beats, jazz, soundtrack work, and Atmos mixing.

How does the HEDD Lineariser® enhance the TYPE 20 MK2's performance?

The HEDD Lineariser® uses a zero-phase filter to deliver a precise stereo image and depth, crucial for accurate mixing and mastering. This feature is enabled by default, ensuring that the sound is super-defined and organic, as noted by users who appreciate its ability to maintain clarity and detail.

What are the input options for the TYPE 20 MK2?

The TYPE 20 MK2 is equipped with both Analog XLR and Digital AES inputs, supporting AES/EBU with daisy-chaining. This allows for flexible connectivity in professional studio environments, accommodating various audio sources without compromising quality.

How should I care for and maintain my TYPE 20 MK2 monitors?

To maintain optimal performance, keep the TYPE 20 MK2 monitors in a clean, dust-free environment. Avoid exposure to extreme temperatures and humidity. Regularly check connections and ensure the monitors are securely mounted. HEDD provides ongoing feature support via HEDD Access software, which can be downloaded separately.

What makes the TYPE 20 MK2 environmentally friendly?

The TYPE 20 MK2 is assembled in Berlin using premium components, ensuring high quality and durability. Each unit undergoes rigorous testing before shipping, reducing waste from defective products. The long-lasting design and 5-year warranty also contribute to its sustainability by minimizing the need for frequent replacements.
