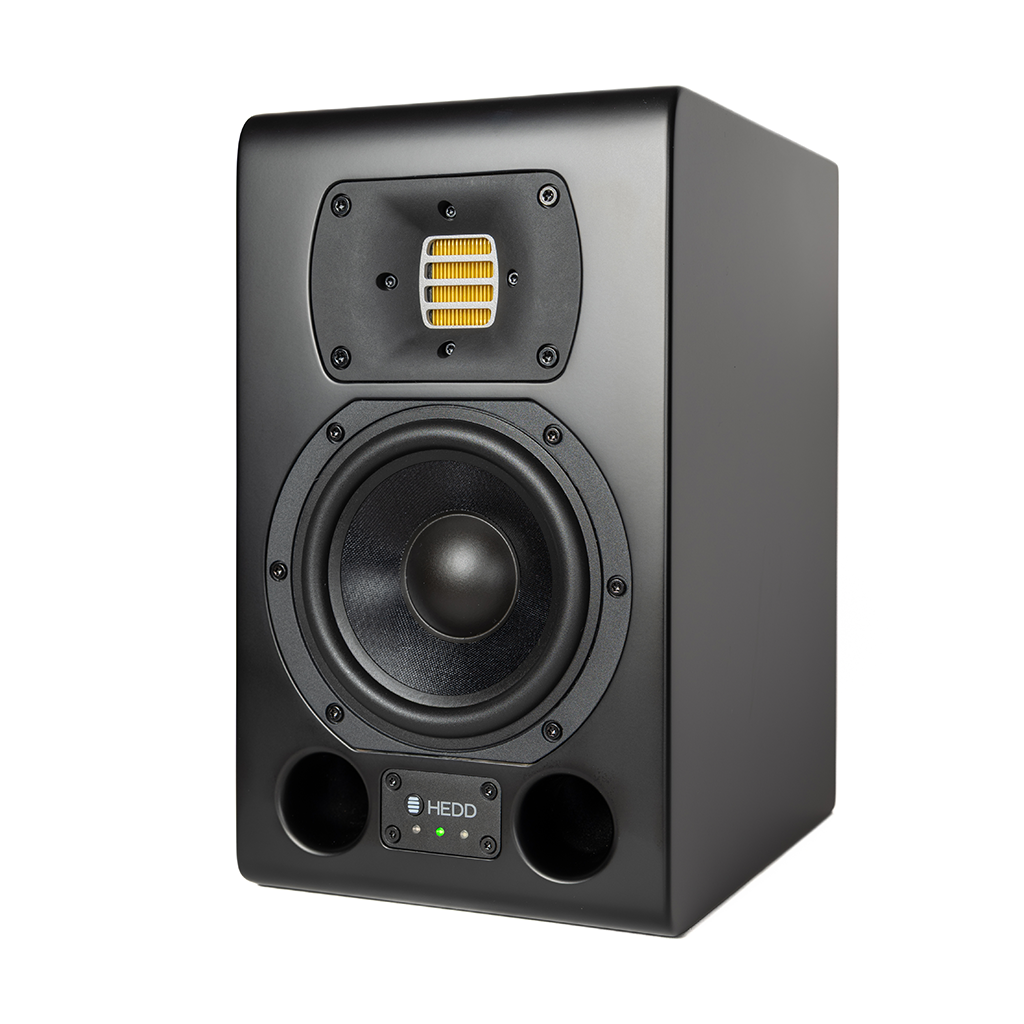

• TYPE 07 ACORE speaker with a front-firing port on white background

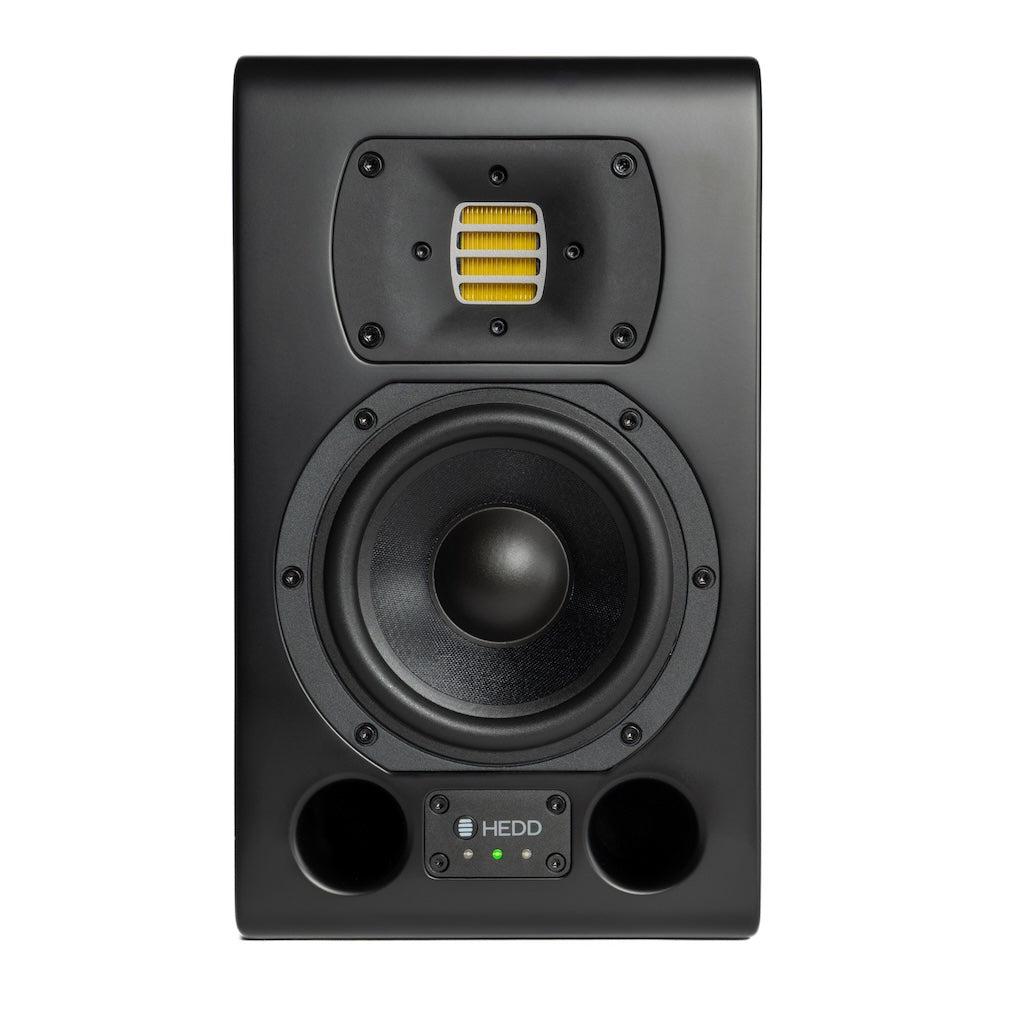

  • TYPE 05 ACORE monitor on a white background

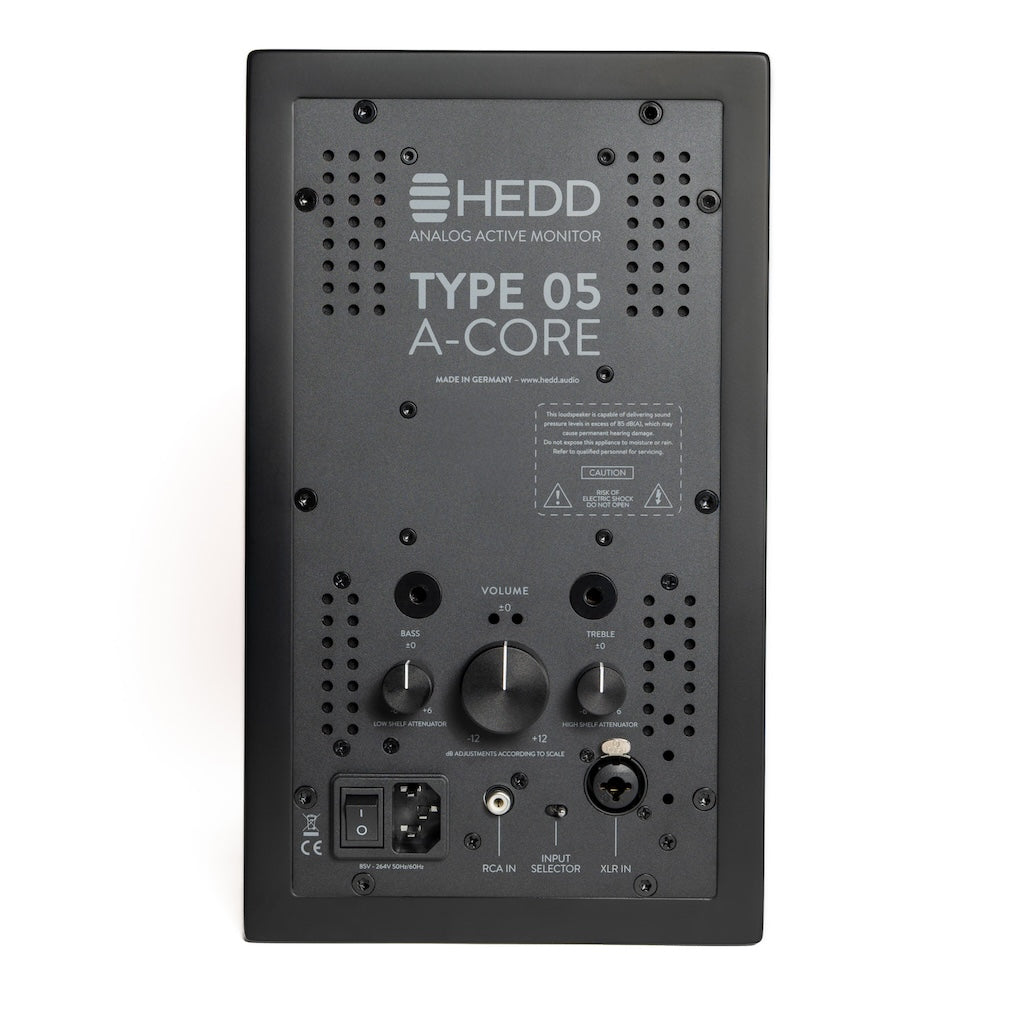

  • Back panel of TYPE 05 ACORE monitor with control knobs and ports.

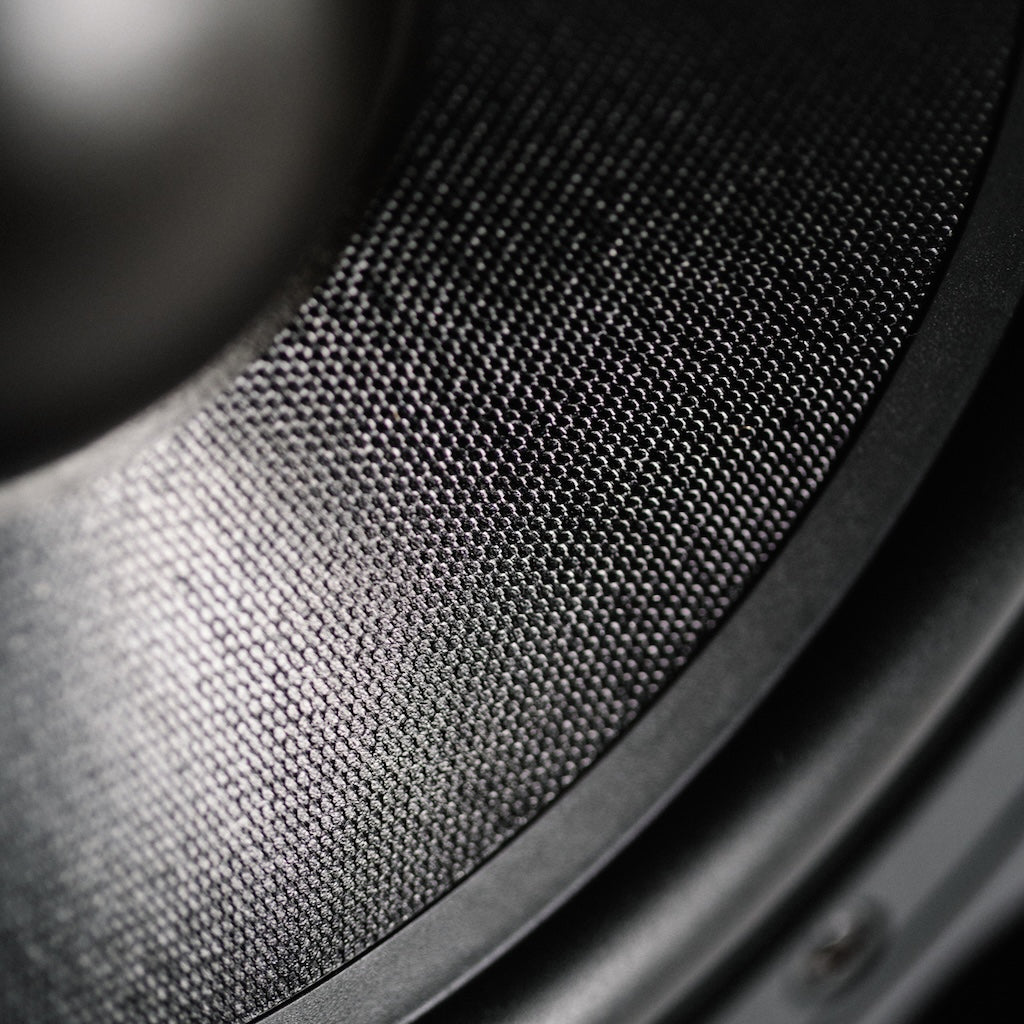

  • Close-up of TYPE 07 ACORE woofer

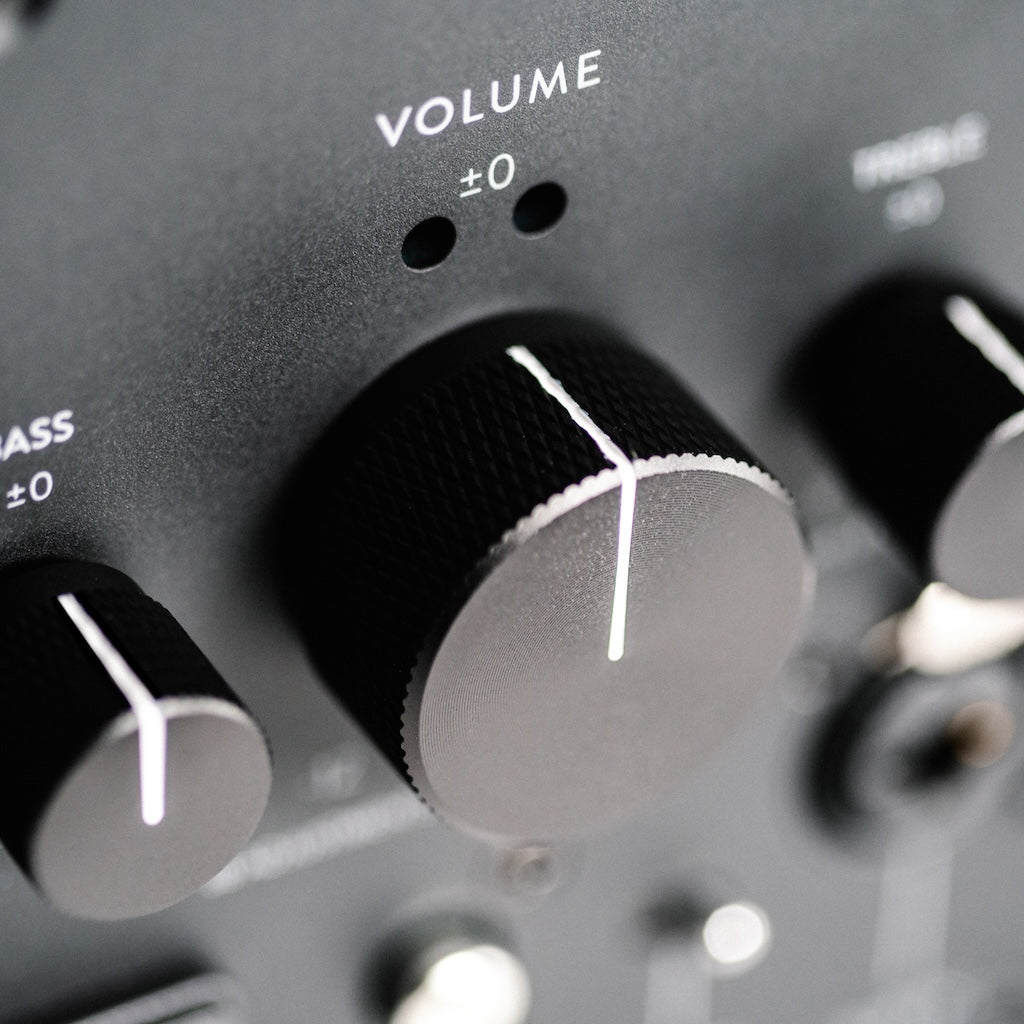

  • Close-up of volume control knobs on TYPE 07 ACORE

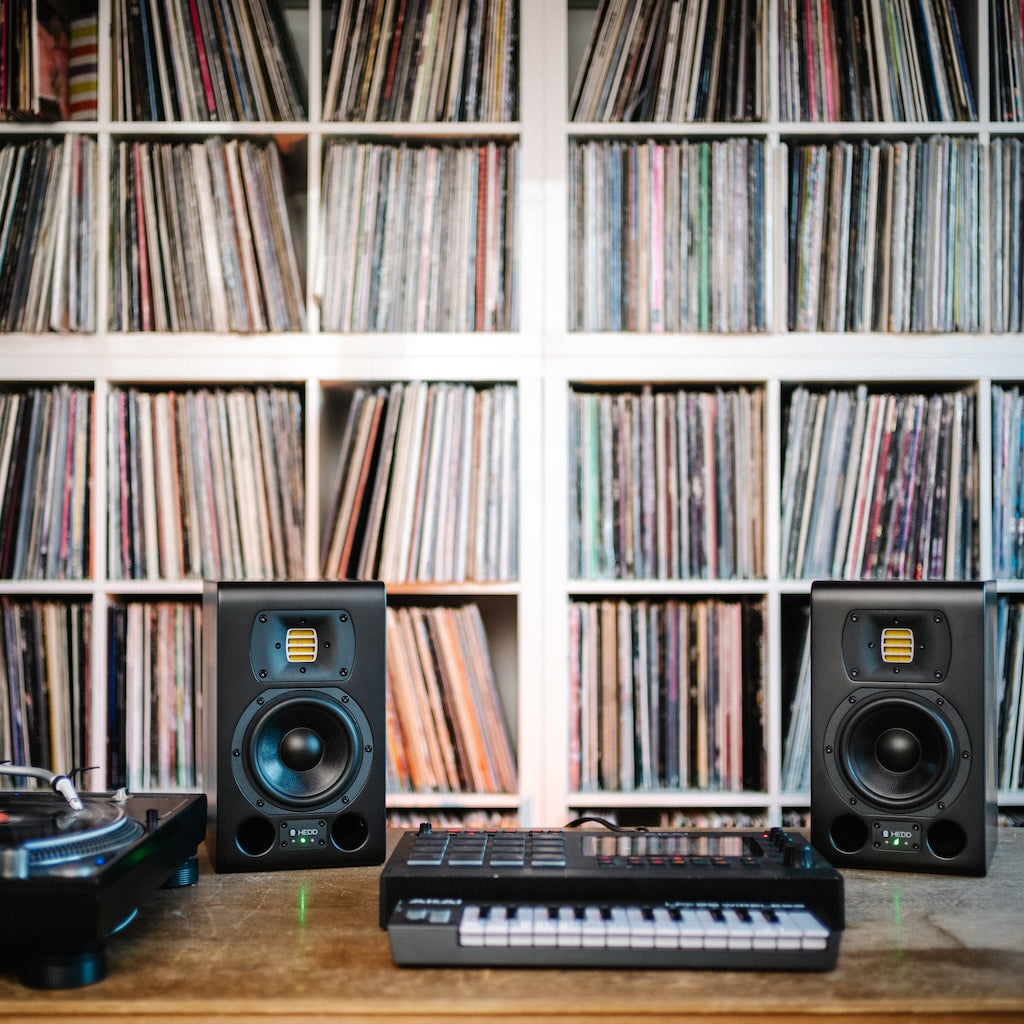

  • TYPE 05 ACORE and keyboard on a table with record shelves in the background.

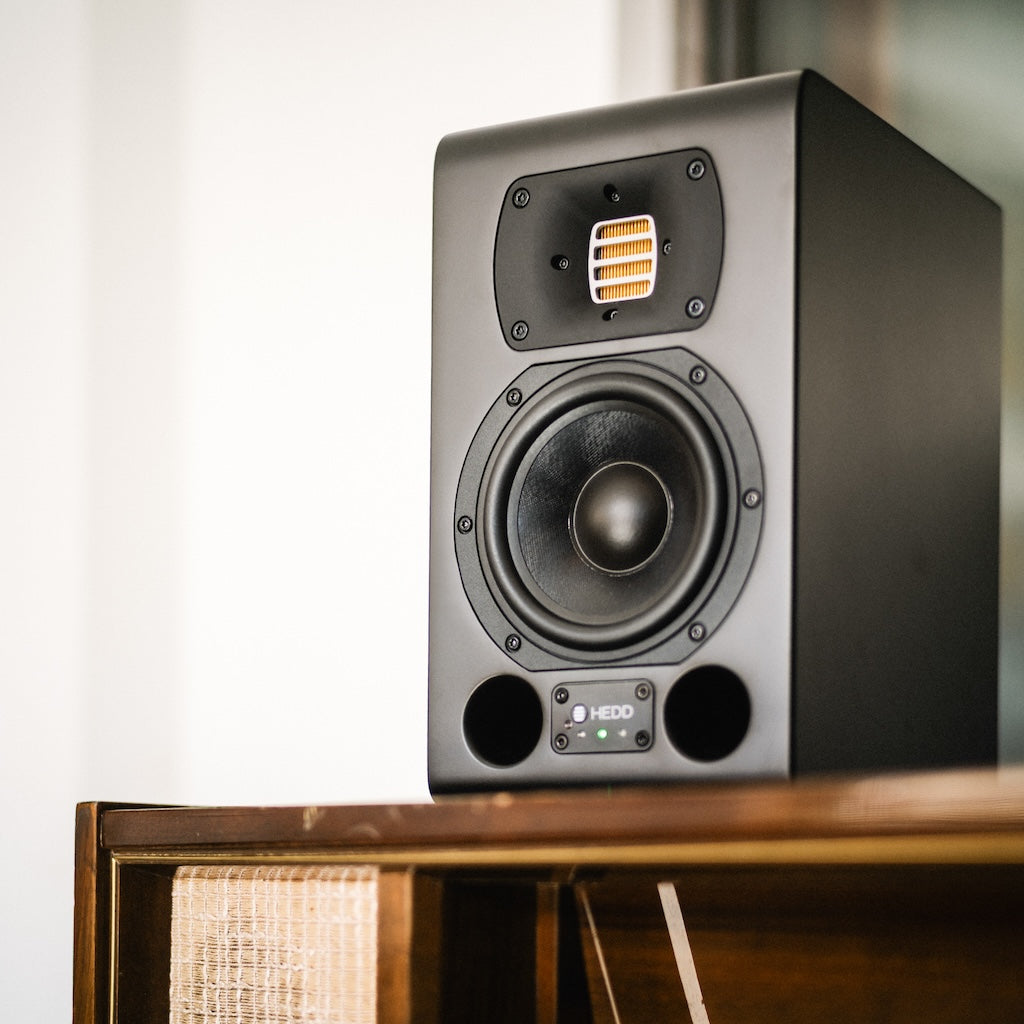

  • TYPE 05 ACORE on a wooden cabinet with a white wall background
1 7

TYPE 05 A-CORE

Analog bliss in a compact form.

$699
$699
Inc. taxes
Find a stockist

Ask our product agent about features, compatibility, or advice on setup!

The TYPE 05 A-CORE is engineered for smaller spaces without sacrificing performance. It pairs our signature AMT tweeter with a 5” custom Honeycomb woofer to deliver exceptionally clear mids and highs with surprisingly deep bass extension (down to 43 Hz).

Its plug-and-play design, analog signal path, and minimal footprint make it ideal for nearfield applications, portable setups, and compact Atmos configurations.

Features

  • Pure analog signal path – no converters, low latency, no software reliance
  • 5” custom honeycomb woofer
  • High-definition Air Motion Transformer driver for clear, accurate upper mid and high frequencies
  • Tuned analog filter board for natural frequency distribution
  • High and Low shelving EQ (±6 dB, continuous) to adjust for your room and tastes
  • RCA (unbalanced), XLR & TRS (balanced) inputs
  • Physical front-panel standby switch
  • Each unit is tested before shipping
  • Mounting ready for Atmos installations
  • Designed and assembled in Berlin with premium components
  • 5 year warranty after registration

Specification

Main Features
2-way active nearfield speaker, Pure Analog Signal Path, Plug-and-Play
Drivers
5” custom Honeycomb compound woofer, Air Motion Transformer tweeter
Power
2 x 100 W ICEpower Class D amplifiers
Frequency Range
43 Hz – 50 kHz
Crossovers
2,500 Hz
Maximum SPL
112 dB SPL (per pair, 1m)
Inputs
XLR, TRS (balanced), RCA (unbalanced)
Design
Heavy duty MDF cabinet, black satin finish, front panel LED indicators
Dimensions
308 × 180 × 245 mm
Weight
6.2 kg (net) per unit

Downloads

The following manuals are available for the TYPE 05 A-CORE.

View full details

Key features

  • Air Motion Transformer

    Handmade in Berlin using high quality components, the HEDD Air Motion Transformer delivers a precise and wonderfully open sound. Thanks to ultra high frequency extension and remarkable transient response, natural sound reproduction is not distorted in any way.

  • Analog Excellence

    A-CORE monitors feature our most sophisticated and reliable analog filter board to date, allowing us to tune every speaker to the most natural response and create a flawless, low-latency analog signal path.

  • Ease of Use

    The A-CORE range is designed with simplicity in mind with XLR, TRS, and RCA inputs and a built-in EQ to match room acoustics and user taste letting you plug in and get straight to the music.

  • Designed and made in Berlin

    All HEDD products are designed and assembled in Berlin by talented engineers and craftspeople who draw from a rich history in audio reproduction to create products tuned to the key of you.

  • 30 days returns

  • Free shipping

  • 5 Year Warranty

Recording Magazine
"Wow! They sound impressive right out of the box. Instantly very comfortable."

Recording Magazine
— The magazine for recording musicians

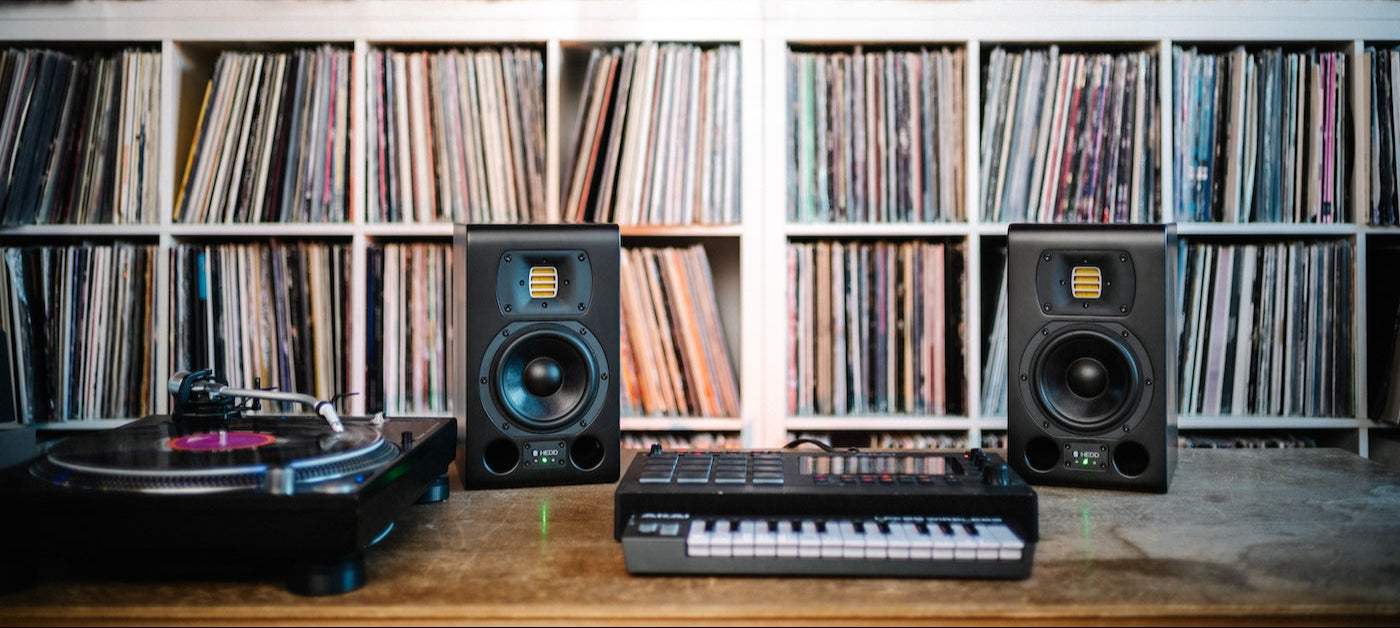

A-CORE In Action

A-CORE In Action

The new HEDD A-CORE range of analog monitors offers seamless integration into a variety of setups, from DJ rigs to immersive studio or even home cinema. We introduce the basics and how to approach each.
Read article

Frequently Asked Questions

How does the TYPE 05 A-CORE perform in small studio settings?

The TYPE 05 A-CORE is engineered specifically for smaller spaces, delivering impressive sound quality without compromising on performance. Its compact design features a 5” custom Honeycomb woofer and an AMT tweeter, providing clear mids and highs with deep bass extension down to 43 Hz. This makes it ideal for nearfield applications and compact Atmos configurations.

What materials are used in the TYPE 05 A-CORE?

The TYPE 05 A-CORE boasts a robust construction with premium components designed and assembled in Berlin. It features a 5” custom Honeycomb woofer for enhanced bass response and a high-definition Air Motion Transformer tweeter for clear, accurate sound reproduction.

What are the connectivity options for the TYPE 05 A-CORE?

The TYPE 05 A-CORE offers versatile connectivity options, including RCA (unbalanced), XLR, and TRS (balanced) inputs. This makes it compatible with a wide range of audio setups, ensuring ease of integration into your existing system.

How do I care for my TYPE 05 A-CORE speakers?

To maintain optimal performance, keep the TYPE 05 A-CORE speakers in a dust-free environment and avoid exposure to extreme temperatures or humidity. Regularly check and clean the inputs and ensure the speakers are securely mounted, especially in Atmos configurations.

What makes the TYPE 05 A-CORE environmentally friendly?

The TYPE 05 A-CORE is crafted with sustainability in mind, using high-quality materials that ensure longevity and reduce the need for frequent replacements. Its efficient design minimizes energy consumption, making it a more eco-friendly choice for audio enthusiasts.
